  • APW Wyott BM-80CD UL Bottom Mount Electric Built-In Hot Food Well Unit

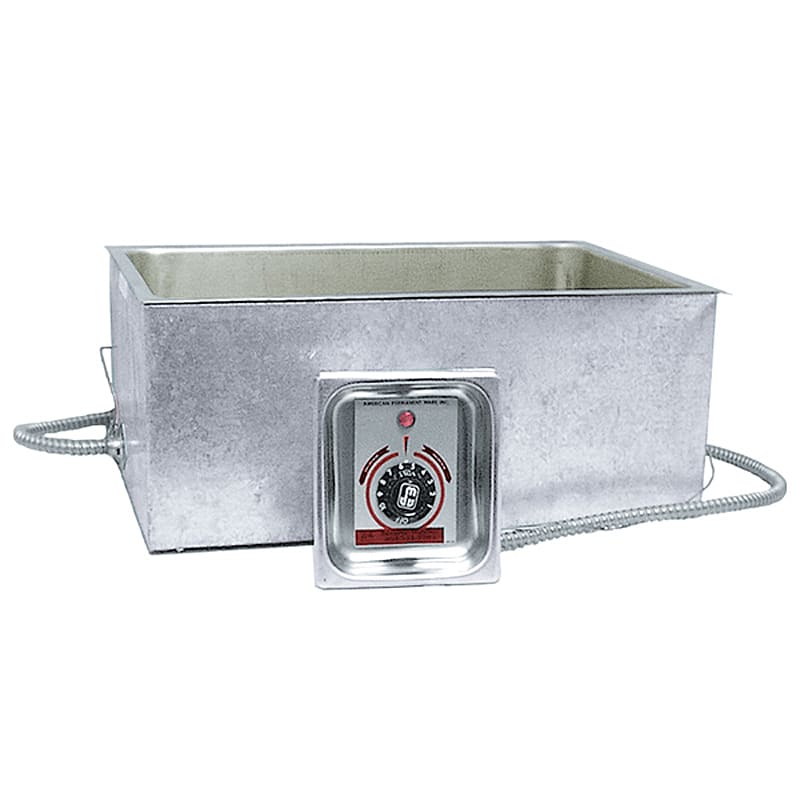

APW Wyott BM-80CD UL Bottom Mount Electric Built-In Hot Food Well Unit

Item #: 204585
Model #: BM-80CD UL
Manufacturer: APW Wyott

The BM-80CD UL comes with square corners and with drain with stainless steel ½ NPT drain welded to bottom of pan and provided with removable screen. This unit includes electrical conduit, bezel and control box.

$361.00
Availability

Factory Ship

 Each
Add to Cart

Description
+ -
The BM-80CD UL comes with square corners and with drain with stainless steel 1/2" NPT drain welded to bottom of pan and provided with removable screen. This unit is available in a wide variety of wattage power to accommodate your needs, whether it is for High Performance, Fast Recovery power or Energy Efficient, Lower wattage (750 watts) power. Heavy-Duty bottom mount, insulated rectangular drop-in hot food well is designed for installation in metal countertop. All bottom mounted food wells are heated by tubular calrod heat element shaped in serpentine fashion for even heat distribution to pan base. Element is mounted under well and secured by an aluminized reflector shield for maximum efficiency and thermostatically controlled for fast heat recovery. This unit includes complete UL listed construction including electrical conduit, bezel and control box.
Standard Features:
  • Constructed of Deep-Drawn 20 Ga. Type 304 Stainless Steel
  • Entire Heat Assembly Covered with Inspection Housing with Layer of 1-1/2" Thick Compressed Fiberglass Insulation
  • Includes Complete UL Listed construction w/ Electrical Conduit, Bezel and Control Box
  • With Drain and Removable Screen
  • Unit May Be Used Wet or Dry (Wet Use Offers Best Results)
  • Easy Access to Heating Elements
  • Thermostatic Control with 36" Capillary (Effective Length 26"
  • UL Construction Includes Electrical Conduit, Bezel and Control Box
  • Large Indicating Pilot Light
  • Multiple Units Can Be Installed in Same Table or Counter
  • Multiple Wattages and Voltage Choices
  • Overall Outside Dimensions: 8-5/16" x 13-13/16" x 21-3/4" (HxWxL)
  • Overall Inside Dimensions: 6-1/4" x 13-3/16" x 20-1/8" (HxWxL)
  • UL Listed
  • Comes with Square Corners
  • Cutout Dimensions: 11-7/8" x 19-7/8" (WxL)
  • UL, CSA, RU, UL Certified
  • 1 Year Limited Warranty
  • Model #: BM-80CD UL
  • Energy Star Rating: Yes
  • Hazmat: No
  • Oversize: No
  • Each Height: 20
  • NSF Approved: Yes
  • Volts: 120
  • UL Approved: Yes
  • Material: Stainless Steel
  • CSA Approved: Yes
  • Each Width: 25
  • CUL Approved: Yes
  • Warranty: 1 Year Warranty
ABOUT APW WYOTT

APW Wyott is a leading source of quality equipment solutions to the foodservice and retail industries worldwide. The company supplies a wide selection of equipment for cooking, toasting, heating and holding, warming and merchandising food items. APW Wyott serves customers in the fast food, casual and fine dining, convenience store, supermarket, hospitality and institutional markets the world over.
