Pitco 24PM 150 Lb Capacity Gas Donut Fryer With Mechanical Thermostat

Item #: 524923

Model #: 24PM Manufacturer: Pitco

Free Shipping

$7367.80
$13,396.00 List Price

Factory Ship
Add to Cart
Add to WishList

Pitco® 150 Lb Capacity Gas Donut Fryer with Mechanical Thermostat


This Pitco® donut fryer is perfect for high volume frying and can handle a wide variety of foods. This fryer has high-temperature alloy stainless steel heat baffles that are mounted in the heat exchanger tubes to provide maximum heating and combustion efficiency. The tank and cabinet are constructed of durable stainless steel.
  • Tank: Stainless steel with smooth peened finish for easy cleaning
  • Cabinet - Stainless front, door, back and sides
  • Alloy stainless steel heat baffles
  • Standing pilot light design provides a ready flame
  • Thermostat maintains selected temperature between 200°F and 400°F
  • Integrated gas control valve
  • Gas control valve prevents gas flow until pilot is lit and shuts off gas if the pilot flame goes out
  • Temperature limit switch shuts off gas flow if the fryer temperature exceeds the upper limit
  • Front 1" drain for quick draining
  • Standing pilot and thermostat maintains temperature selected between 200°F and 400°
  • Drainboard (also used as fryer cover)
  • Hinged wire mesh submerger screen with safety grid handles
  • 6" Adjustable legs
  • Wire mesh tube screen
  • One drain line clean-out rod
  • One drain extension
  • (2) Donut turner sticks
  • CSA Certified (AGA, CGA), NSF Listed, MEA Approved
  • Makes 80 dz. donuts per hour
  • 150 lb Oil capacity
  • 120,000 BTU
  • Fry Area: 24" x 24" x 4-1/4"
  • Ship Weight: 400 lbs
  • Model # : 24PM
Product Name Pitco 24PM 150 Lb Capacity Gas Donut Fryer With Mechanical Thermostat
Product ID 524923
Manufacturer Name Pitco
Model Number 24PM
Length 0.0 in
Width 0.0 in
Height 0.0 in
Weight 375.0 lb
Cross Reference ID 24PM
Hazmat
Oversize
Return To Manufacturer
Gas Type Natural Gas
NSF Approved
CSA Approved
Material Stainless Steel
Max Weight Capacity 150 lb
There are no reviews at this time. Be the first to review this product!
2 Questions Asked
Page 1 of 1      - 1 -
By: Happy Donuts
From: Sacramento CA 95835
Nov 10, 2012
Question:

how many dozens of donute per hour does the fryer produce?

Answer:

Hello, this fryer can make around 80 dozen donuts per hour. Thank you!

By: Boz
From: Libby, MT
Jan 18, 2014
Question:

Is this unit or any others available with LP/Propane?

Answer:

Hi, this unit works with natural and LP gas. You may want to view the operating manual on the "literature" tab of the product page. It has some information on the gas connection on page 7 that may be helpful to you. Thank you.

Product   Price Quantity
Pitco B2100204 Tank Cover For Model 24F /24FF /24R /E24 / 24P Fryers Pitco B2100204 Tank Cover For Model 24F /24FF /24R /E24 / 24P Fryers

Item #:397924   Sold As: EA

Model #: B2100204

By:  Pitco

$289.30

Factory Ship

Add to Cart

Add to Wish List

Pitco® P6072402 Tube Screen For Model 24 Donut Fryers Pitco® P6072402 Tube Screen For Model 24 Donut Fryers

Item #:351774   Sold As: EA

Model #: P6072402

By:  Pitco

$87.60

Factory Ship

Add to Cart

Add to Wish List

Pitco® P6072401 23" x 23" Donut Screen With Handles Pitco® P6072401 23" x 23" Donut Screen With Handles

Item #:990915   Sold As: EA

Model #: P6072401

By:  Pitco

$113.30

Factory Ship

Add to Cart

Add to Wish List

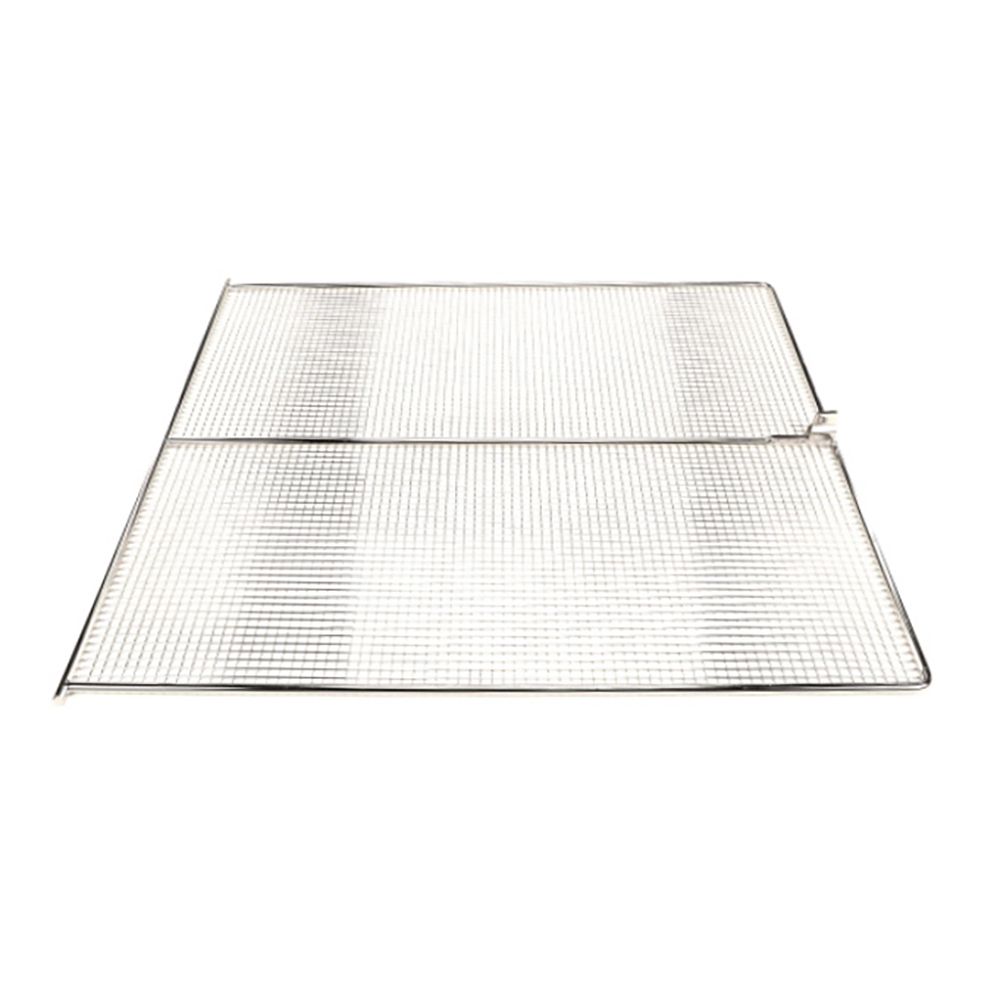

Pitco B4506824 Crueler Submerger For Models 24P / 24R Donut Fryers Pitco B4506824 Crueler Submerger For Models 24P / 24R Donut Fryers
