Please verify your Model and Serial Number before ordering any replacement part, contact Customer Service for assistance.

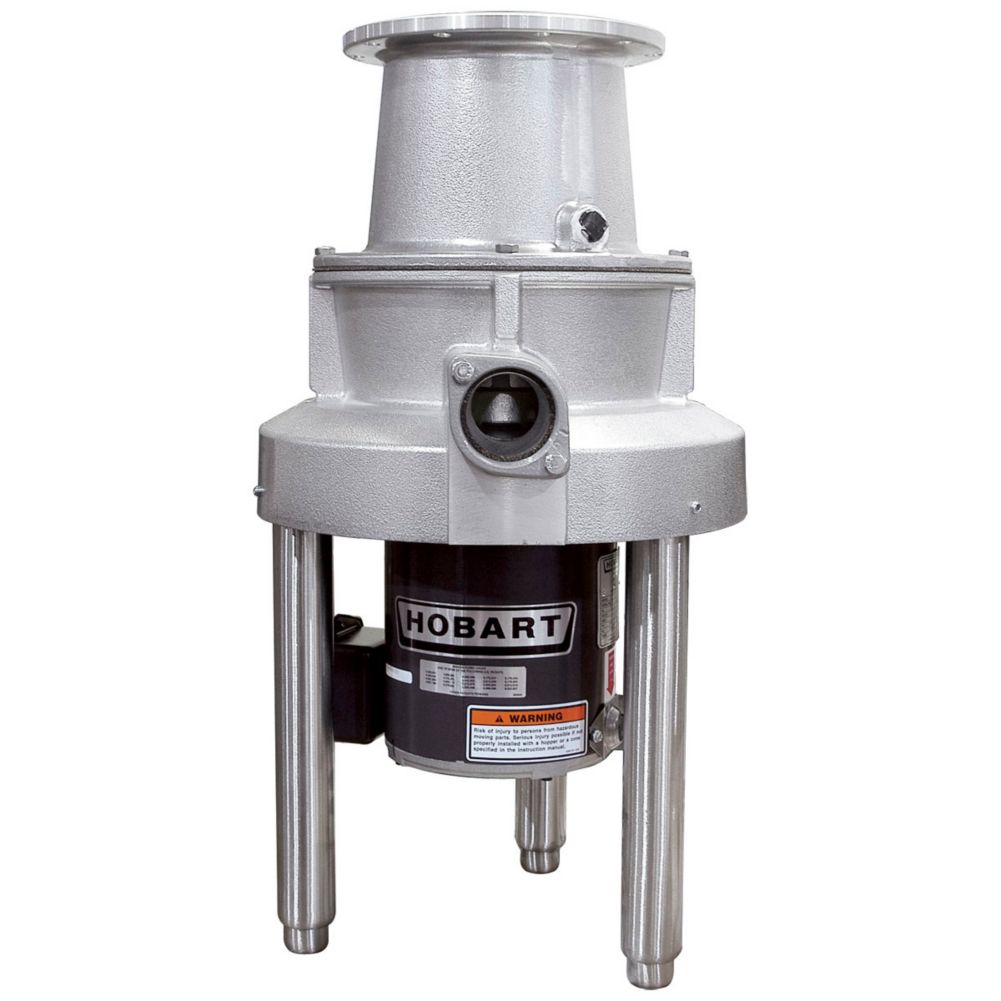

This disposer grinds and flushes food waste through the drain lines instead of accumulating in the garbage containers.
- Model #: FD4/300
- Material: Stainless Steel
- Motor features manual reset thermal overload protection
- Permanently lubricated ball bearings for upper and lower shaft support
- Heavy ductile iron upper housing, ductile gray powder coat cast iron lower housing
- Tubular stainless steel legs with flanged feet (Adjustable up tp 1")
- Fastens to 7" I.D. (throat opening) cones
- Vinyl isolating ring eliminates metal-to-metal contact at the cone mounting to reduces noise
- Abrasion resistant shredder ring
- Heated treated cast ductile iron 13?8" high, 40 grinding teeth
- (2) Hardened cast ductile iron flywheels with 8" diameter
- Drain Connector: Removable outlet flange is tapped for 2" pipe connection
- Dual directional grinding
- 3HP, 208-240/480, 60 Hz, 3 Phase
- Rated AMPS: 9.9-9.01/4.5
- Height: 34"
- ETL Listed
- Shipping Weight: 158 lbs.
