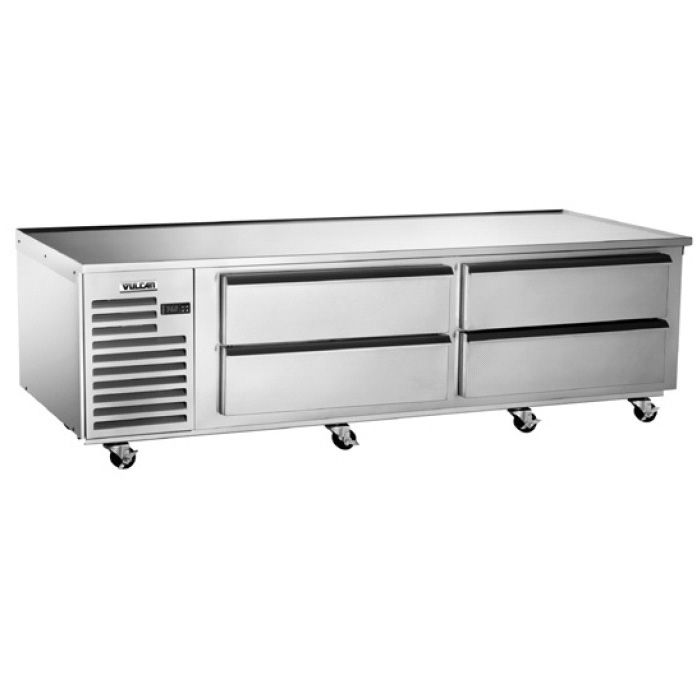

Vulcan VSC72 Self-Contained 72" Refrigerated Base with 4 Drawers

This Vulcan VSC72 Series refrigerated equipment stands are designed for use along the cook line where cabinet strength and system performance really matter. Their rear mount evaporators keep food cold in very warm kitchen environments despite frequent drawer openings. They also offer greater capacity as each drawer accommodates 6" deep pans, and a variety of other features making them ideal for the equipment stand application. Drawers include a stay open and self-closing feature, as well as a guard to protect the gasket from damage.
Standard Features:
  • Vulcan
  • Stainless steel exterior and interior
  • Custom stainless steel top for unitized assembly withe V Series range component only
  • Microprocessor control system
  • Balanced, self-contained refrigeration system using R-404A
  • Front-breathing design for "zero-clearance" installation
  • Non-electric automatic condensate evaporator
  • Condenser filter
  • Off-cycle evaporator defrost
  • Controllable anti-condensate drawer perimeter heaters
  • Full length drawer handle with gasket guard
  • Magnetic snap-in door gaskets
  • Drawers accommodate 12" x 20" x 6" pans (pans by others)
  • Self-closing drawers with stay open feature
  • 14-gauge stainless steel drawer slide
  • Side, front and rear access panel for ease of service and maintenance
  • 3" casters on adjustable channel moving system
  • 9' cord and cord retainer
  • Length Overall: 72" (182.9 cm)
  • Depth Cabinet Only: 32" (81.3 cm)
  • Depth with Drawer Open: 54-1/8" (137.5 cm)
  • Depth Over Handle: 34-1/8" (86.7 cm)
  • Height Overall on 4" Casters: 26" (66.0 cm)
  • Max Top Load Capacity: 1500 lbs.
  • Pan Capacity: (8) 12" x 20" x 6" pans
  • Pan Orientation: Front to back
  • 8 Drawers (4 drawers per cabinet)
  • Voltage: 115 / 60 / 1
  • Full Load Amperes: 6.7"
  • Plug Type: NEMA 5-15P
  • Refrigerant: R-404A
  • BTU / HR - HP: 2240 (1/3 HP)
  • One year parts and labor warranty
  • Two year control warranty (parts and labor)
  • Five year compressor warranty
  • Three year drawer parts warranty
  • Model Number: VSC72
Product Name Vulcan VSC72 Self-Contained 72" Refrigerated Base with 4 Drawers
Product ID 178235
Manufacturer Name Vulcan
Model Number VSC72
Length 0.0 in
Width 0.0 in
Height 0.0 in
Weight 440.0 lb
Cross Reference ID 178235, VSC72, VUL-VSC72
Return To Manufacturer
Brand Name Vulcan
Material Stainless Steel
Mfg Part # VSC72
NSF Approved
Plug Type NEMA 5-15P
UL Approved
Volts 115
Warranty Details 1 Year Limited Parts and Labor Warranty
Spec Sheet
