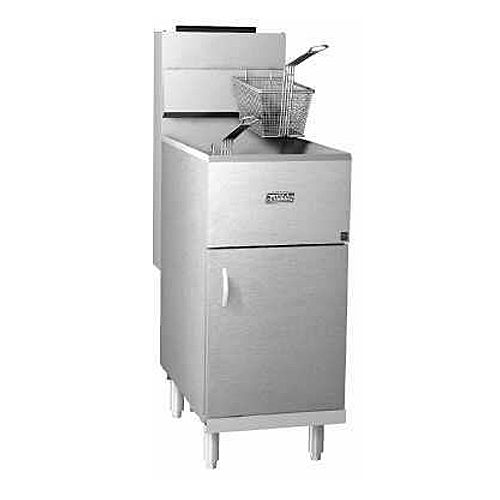

Pitco Frialator 40S Economy 40-45 lb 105,000 BTU Propane Gas Fryer

Item #: 108572

Model #: 40S Manufacturer: Pitco

$818.29
$1,426.83 List Price

In Stock
Add to Cart
Add to WishList

Pitco Frialator Economy fryers feature a gas control valve, temperature limit switch, and a welded tank with smooth peened finish that's easy to clean. A thermostat maintains the selected temperature automatically and a temperature switch shut off the gas if the temperature exceeds the upper limit.
  • Model # : 40S-LP
  • Propane gas
  • Cabinet - stainless steel front and door
  • Galvanized sides and back
  • Tank - mild steel with stainless front
  • High-temperature alloy stainless steel heat baffles
  • Standing pilot light design
  • Millivolt thermostat maintains selected temperature between 200°F and 400°F
  • Integrated gas control valve acts as a manual and pilot valve, automatic pilot valve, gas filter, pressure regulator and automatic main valve
  • Gas control valve stops gas flow to main burner until pilot is lit and shuts off gas flow if the pilot goes out
  • Temperature limit switch shuts off gas flow if the fryer temperature exceeds the upper limit
  • Front 1-1/4" NPT drain for quick draining
  • Two nickel plated oblong, wire mesh baskets
  • One nickel-plated tube rack
  • One drain nipple
  • One drain line clean-out rod
  • Removable basket hanger for easy cleaning
  • 6" adjustable legs
  • Oil Capacity: 40-45 lbs
  • 105,000 BTU
  • Ship Weight: 170 lbs
  • CSA, MEA approved and NSF Listed
Product Name Pitco Frialator 40S Economy 40-45 lb 105,000 BTU Propane Gas Fryer
Product ID 108572
Manufacturer Name Pitco
Model Number 40S
Length 30.28 in
Width 15.13 in
Height 47.28 in
Weight 170.0 lb
Hazmat
Oversize
Return To Manufacturer
Mfg Part # 40S
Gas Type Propane
CSA Approved
NSF Approved
Material Stainless Steel
Max Weight Capacity 45 lb
Brand Name Pitco Frialator
Weight Capacity 45 lb
There are no reviews at this time. Be the first to review this product!
5 Questions Asked
Page 1 of 1      - 1 -
By: Oscar
From: Kansas City ,MO
Mar 10, 2014
Question:

Dimension on the fryer please..Thanks

Answer:

Hello, this fryer has an overall height of 47-9/32" (including the 6" adjustable legs), and an overall width of 15-1/8". The frying area is 14" x 14". Further information on dimensions can be found on the Spec Sheet under the Literature tab for this product. Thank you!

By: Mike Elicson
From: Sunbury, OH
Jun 9, 2015
Question:

Hi - I bought three of these LP Frialators. Wondering if Pitco has a connection kit or hose to connect to standard #20 propane tank. Thanks.

Answer:

Hello, you would need a 3/4" connection. We have a couple of these - item 448939 and 343860. However, the manufacturer has stated that they worry about a 20 lb. tank being used in warm weather, as this may freeze up the tank being too small. You need to be able to deliver a minimum of 12 of water column. For further information, Pitco can be contacted at 603-225-6684 .Thank you!

By: Tim
From: Deerfield Beach, Fl
Dec 22, 2015
Question:

Are there casters for this product. I know there are, because I have one already. What I mean is do you sell them and what is the product code?

Answer:

Hello, the replacement casters are item 108709. For assistance with ordering, our customer service department can be reached at 1-866-634-8927. Thank you!

By: Bill
From: San Antonio,Tx
Dec 29, 2015
Question:

I have an Pitco Model 40s and I am looking for a basket hanger.

Answer:

Please contact Wasserstrom customer service at 1-866-634-8927 with the model and serial number of your Pitco fryer to ensure you get the correct hanger basket. Thanks!

By: Joe
From: LOWELL, MA
Mar 12, 2016
Question:

what is minimum gas pressure into the fryer for proper operation... what is the maximum gas pressure (I use the fryer on a food truck)

Answer:

Hi, if you click on the "Literature" tab of the product page, you can find the spec sheet and manual for this particular fryer which has a lot of detailed information. You also may want to contact the manufacturer in regards to the gas pressure information. Pitco can be reached at 603-225-6684. Thank you.
