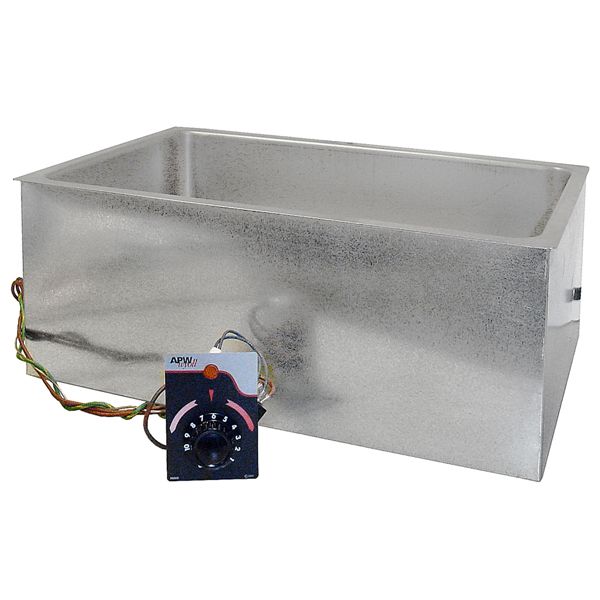

APW Wyott Insulated Hot Food Well Bottom Mount Series w/ Drain, BM-80D

APW Wyott Insulated Hot Food Well Bottom Mount Series w/ Drain, BM-80D
Item #: 977112

Model #: BM-80D	Manufacturer: APW Wyott

$277.02
$555.00 List Price

Qty:
Each

FACTORY-SHIP

Ask a Question

Review this Item

Companion Items

		Super Pan II Full Size Heavy Duty S/S Steam Table Pan, 14 Qt Item #: 100505
$39.25

		Solid S/S Full Size Pan Lid Item #: 100004
$15.44

		Cambro Solid Black Camwear® 10" Buffet Spoon Item #: 106515
$2.88

Description
Specifications
Literature
Reviews
Q & A

APW Wyott Insulated Hot Food Well Bottom Mount Series w/ Drain, BM-80D

The BM-80D comes with stainless steel 1/2" NPT drain welded to bottom of pan and provided with removable screen. This unit is available in a wide variety of wattage power to accommodate your needs, whether it is for High Performance, Fast Recovery power or Energy Efficient, Lower wattage (750 watts) power. Heavy-Duty bottom mount, insulated rectangular drop-in hot food well is designed for installation in metal countertop. All bottom mounted food wells are heated by tubular calrod heat element shaped in serpentine fashion for even heat distribution to pan base. Element is mounted under well and secured by an aluminized reflector shield for maximum efficiency and thermostatically controlled for fast heat recovery. This unit in a UL recognized component construction with open wires and increase-decrease plate.
Standard Features:

Constructed of Deep-Drawn 20 Ga. Type 304 Stainless Steel
Entire Heat Assembly Covered with Inspection Housing with Layer of 1-1/2" Thick Compressed Fiberglass Insulation
With Drain and Removable Screen
Unit May Be Used Wet or Dry (Wet Use Offers Best Results)
Easy Access to Heating Elements
Thermostatic Control with 36" Capillary (Effective Length 26"
Includes Open Wires and Increase-Decrease Plate
Large Indicating Pilot Light
Multiple Units Can Be Installed in Same Table or Counter
Multiple Wattages and Voltage Choices
Overall Outside Dimensions: 8-5/16" x 13-13/16" x 21-3/4" (HxWxL)
Overall Inside Dimensions: 6-1/4" x 13-3/16" x 20-1/8" (HxWxL)
Cutout Dimensions: 11-7/8" x 19-7/8" (WxL)
UL, CSA, RU, UL Certified
1 Year Limited Warranty
Model #: BM-80D

Product Name	APW Wyott Insulated Hot Food Well Bottom Mount Series w/ Drain, BM-80D
Short Product Description	HOT FOOD WELL UNIT, BUILT-IN, ELECTRIC, BOTTOM MOUNT, WET OR DRY OPERATION, SINGLE 12" X 20" PAN, THERMOSTATIC CONTROLS, STAINLESS PAN, 120 V
Product ID	977112
Manufacturer Name	APW Wyott
Model Number	BM-80D
Length	21.75 in
Width	13.81 in
Height	8.31 in
Weight	20.0 lb
Cross Reference ID	BM-80D, APW-BM80D, 977112
Hazmat	N
Oversize	N
Return To Manufacturer	Y
CSA Approved	Y
CUL Approved	Y
Energy Star Rating	92.5
Ground Only	N
Material	Stainless Steel
Mfg Part #	BM-80D
UL Approved	Y
Volts	120
Warranty	1 Year Parts and Labor Warranty
