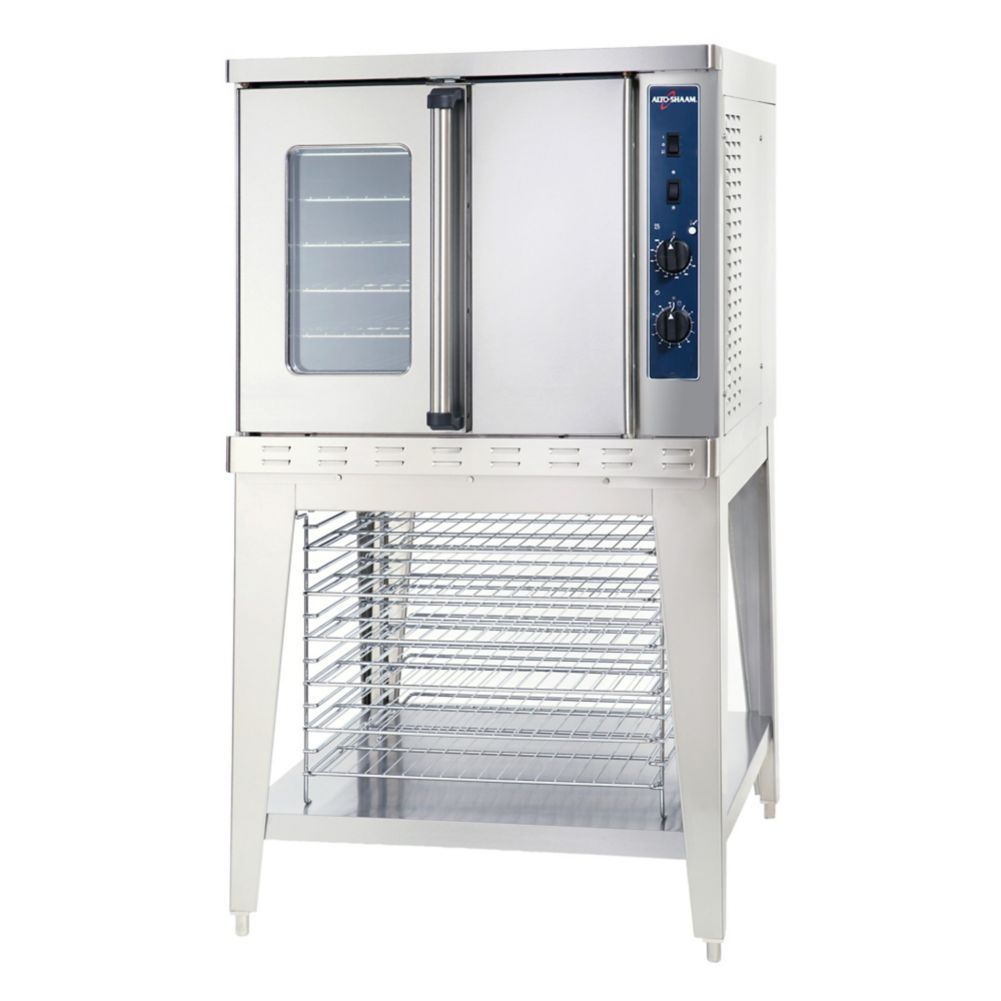

Alto-Shaam® ASC-4E Platinum Series Manual Control Convection Oven
Alto-Shaam® Platinum Series Electric Convection Oven features - manual control, porcelain enamel interior and solid welded construction. The oven interior is construction of porcelain enamel with coved corners, and a heavy duty, 14 gauge bottom liner. It is supplied with six (6) chrome plated wire shelves with 2 removable side racks and 12 shelf positions spaced at 1-3/4". The oven is furnished with two interior lights, a 10,000 watt heating element and a heavy duty, 3/4 hp, two-speed fan motor. Control includes a 100° F to 500° F thermostat and a 60 minute count-down timer. The control features a oven cool-down function, oven-ready indicator light, and produces and audible signal when time has expired. The oven is supplied with 25" legs with bullet feet.
- Height: 57-1/2"
- Width: 38"
- Depth: 44-1/2"
- Weight: 393 Lbs.
- Product/Pan Capacity: 72 Lbs. or 45 Qts.
- Nine (12) Full-Size Sheet Pans
- (6) Chrome Plated Wire Shelves with 2 Removable Side Racks
- Manual Controls
- Superior Baking and Roasting Capability
- Solid Stainless Steel Door and a Double Pan Thermal Window
- A Dependent 60-40 Door System Includes Solid S/S Doors
- Double Pane Thermal Window Door to View the Lighted Oven Interior
- Solid Welded Construction with Stainless Steel Front, Top, Left and Right Sides
- Rear Enclosure Panel is Made with Corrosion Resistant Coated Steel
- Removable Oven Baffle Provides Easy Cleaning
- Heavy-Duty 3/4 hp, Two-Speed Motor Provides a Fan Speed for High Volume Production or Delicate Baking
- Easy to Clean Porcelain Enamel Oven Interior is Standard
- 10kW Heating Element
- Durable, Low Maintenance Stainless Steel Door Gasket
- UL, CUL, CE and NSF Certified
- Model#: ASC-4E
