Blodgett 10-Pan Convection Steamer on Gas Fired Boiler Base

Blodgett 10-Pan Convection Steamer on Gas Fired Boiler Base
Item #: 659870

Model #: 10G-SB	Manufacturer: Blodgett Oven And Steam

$19992.50
$36,350.00 List Price

Qty:
Each

FACTORY-SHIP

Ask a Question

Review this Item

Companion Items

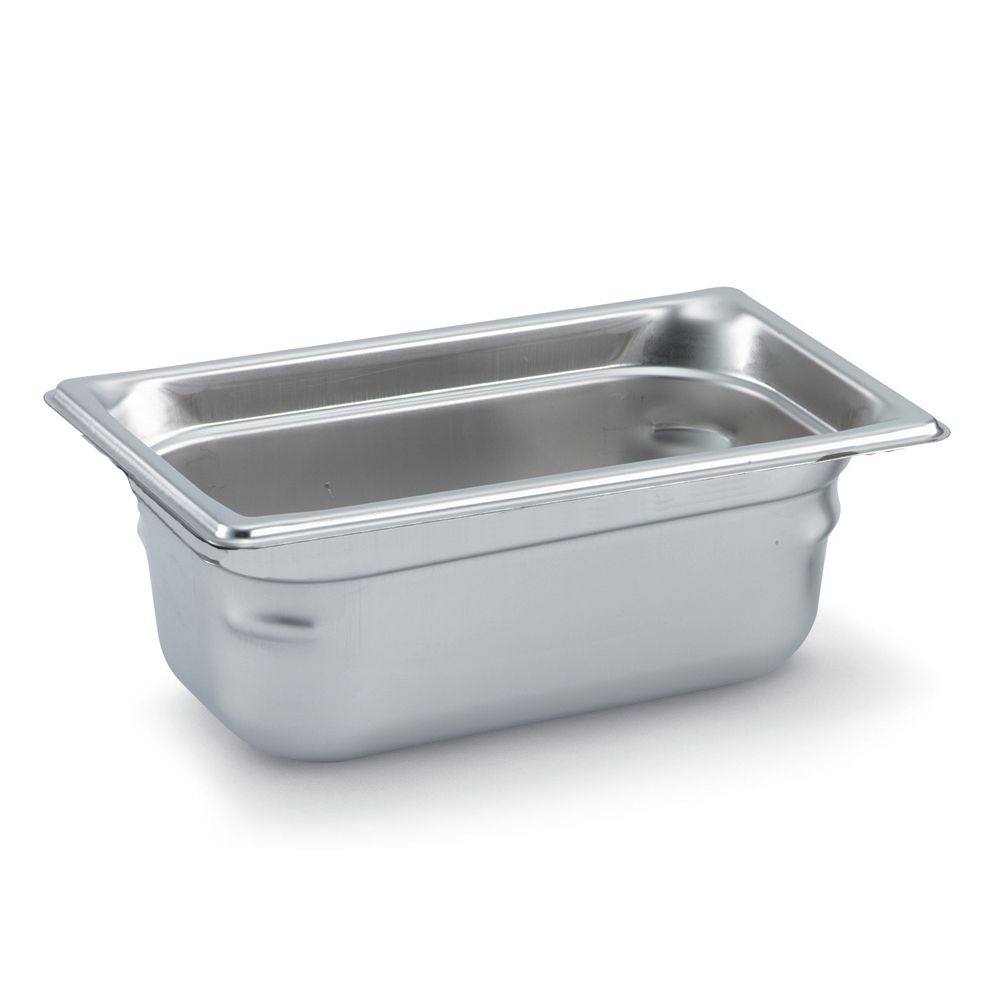

		Super Pan 3 1/4 Size S/S Steam Table Pan, 1.8 Qt Item #: 137209
$14.76

		Tucker Industries 15" Liner for Conventional-Style Oven Mitt Item #: 122542
$12.10

Description
Specifications
Literature
Videos
Reviews
Q & A

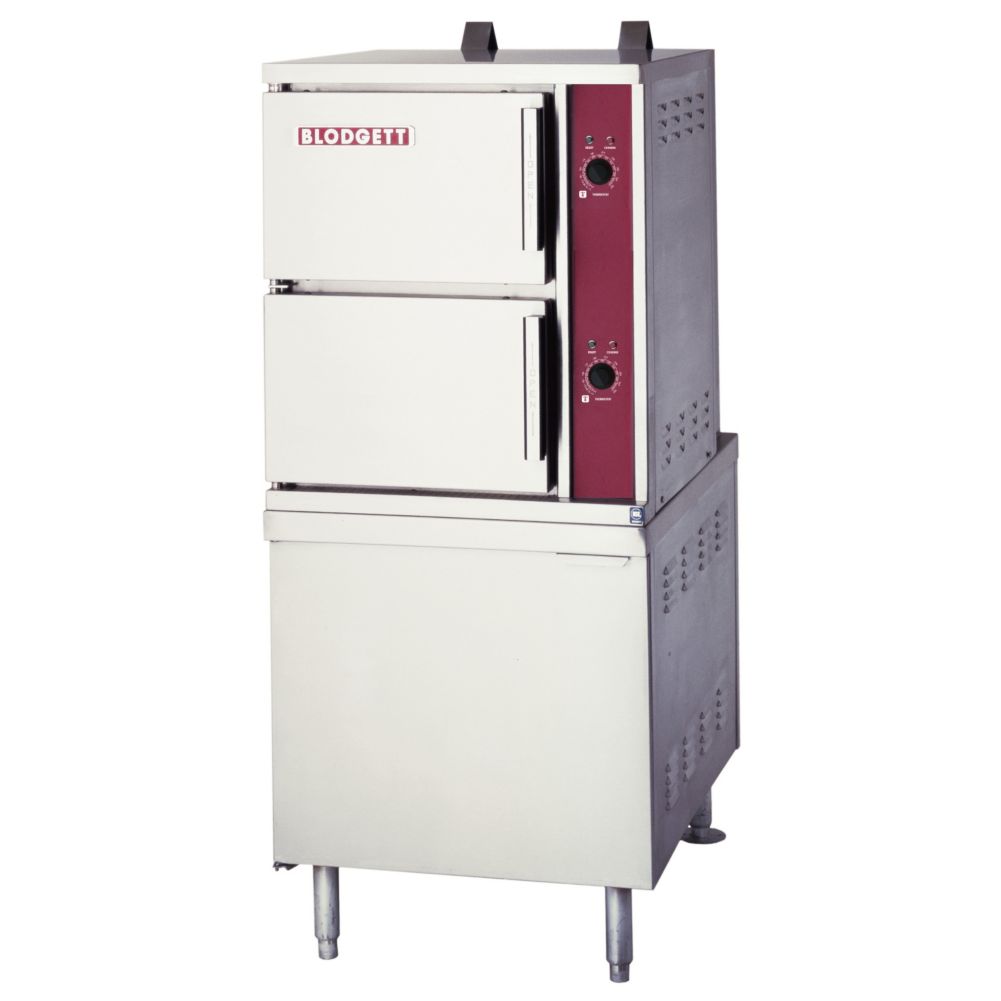

Blodgett 10-Pan Convection Steamer on Gas Fired Boiler Base

Blodgett pressureless convection steamers uses high velocity dry steam to provide efficient, consistent results. These steamers are available with either steam generators or cabinet boiler bases in a variety of sizes. The exterior is polished 304 stainless steel with a 316 stainless steel liner in the cooking compartment. The coved corners in the lining allow for easy cleaning. The easy open door with a hands free quick release handle has a 5 year warranty. The auto steam generator blowdown reduces mineral buildup. The separate cold water condenser for each steam compartment saves you money on the cost of filtered water.

Water Supply Information:

Total dissolved solids: Less than 60 PPM
Silica: Less than 13 PPM
pH Factor: 7.0 - 8.5
Total alkalinity: Less than 20 PPM
Chlorine: Less than 1.5 PPM

Steamer:

304 satin finish stainless steel
Welded stainless steel door w/ removable liner
Positive lock and seal mechanism
One piece welded stainless steel cooking chamber
Separate controls for each compartment
Stainless steel pan supports
60 minute electric timer

Boiler Base:

Stainless steel exterior
Hinged door with magnetic lock
Automatic water level control
Automatic boiler blowdown
Water and pressure gauges
Pressure control with safety control
Safety relief valve

Additional Information:

Weight: 870 lbs
115 VAC, 1 phase,60 Hz
3/4" IPS supply line required
200,000 BTU
Electromechanical controls
Electronic ignition
Five year limited warranty on steamer door
One year parts / labor warranty
NSF approved
CSA approved
Model #: SB-10G

Product Name	Blodgett 10-Pan Convection Steamer on Gas Fired Boiler Base
Short Product Description	STEAMER, CONVECTION, GAS, (2) COMPARTMENT, (5) 12" X 20" X 2- 1/2" PAN CAP. EACH, MANUAL CONTROLS, AUTOMATIC BOILER BLOWDOWN, 316 S/S INTERIOR, 24" BOIL
Product ID	659870
Manufacturer Name	Blodgett Oven And Steam
Model Number	10G-SB
Length	33.0 in
Width	24.0 in
Height	68.5 in
Weight	790.0 lb
Cross Reference ID	BLD-SB-10G, SB-10G, SB10G, 659870
Hazmat	N
Oversize	N
Return To Manufacturer	Y
Material	Stainless Steel
Volts	115/60/1
NSF Approved	Y
CSA Approved	Y
Each Depth	33
Each Height	68.5
Each Weight	870
Each Width	24
Warranty	Y

Spec Sheet

Parts Manuals

Installation Guides

Write a Review

There are no reviews at this time. Be the first to review this product!

Ask a Question

There are no questions at this time. Be the first to ask a question about this product!
