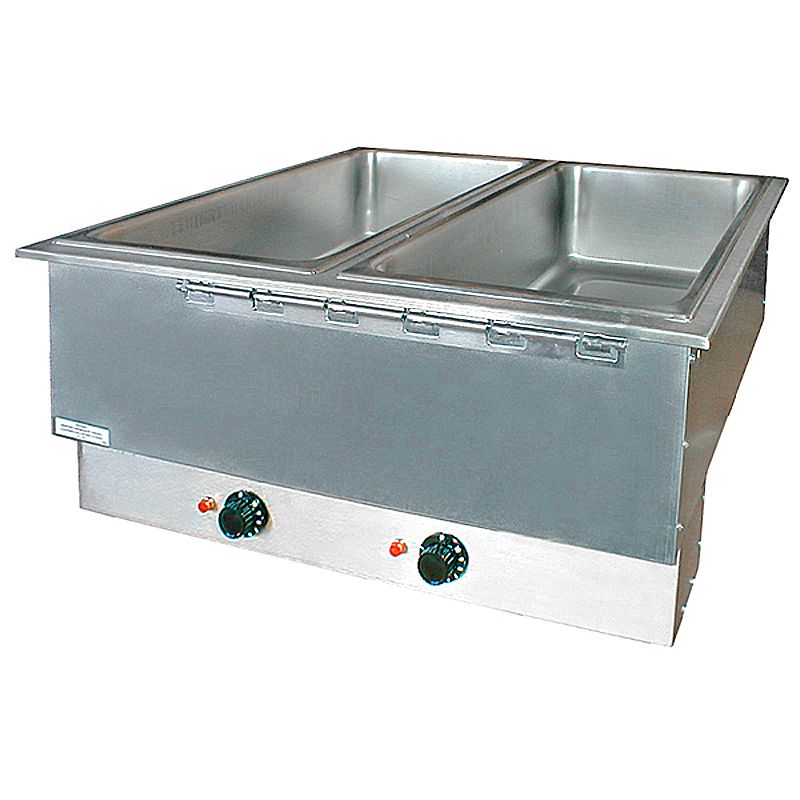

APW Wyott 58-1/2" Top Mount Hot Food Well w/ Controls, HFWAT-4

APW Wyott 58-1/2" Top Mount Hot Food Well w/ Controls, HFWAT-4
Item #: 596959

Model #: HFWAT-4	Manufacturer: APW Wyott

$1761.01
$3,313.00 List Price

Qty:
Each

FACTORY-SHIP

Ask a Question

Review this Item

Companion Items

		Super Pan II Full Size Heavy Duty S/S Steam Table Pan, 14 Qt Item #: 100505
$39.25

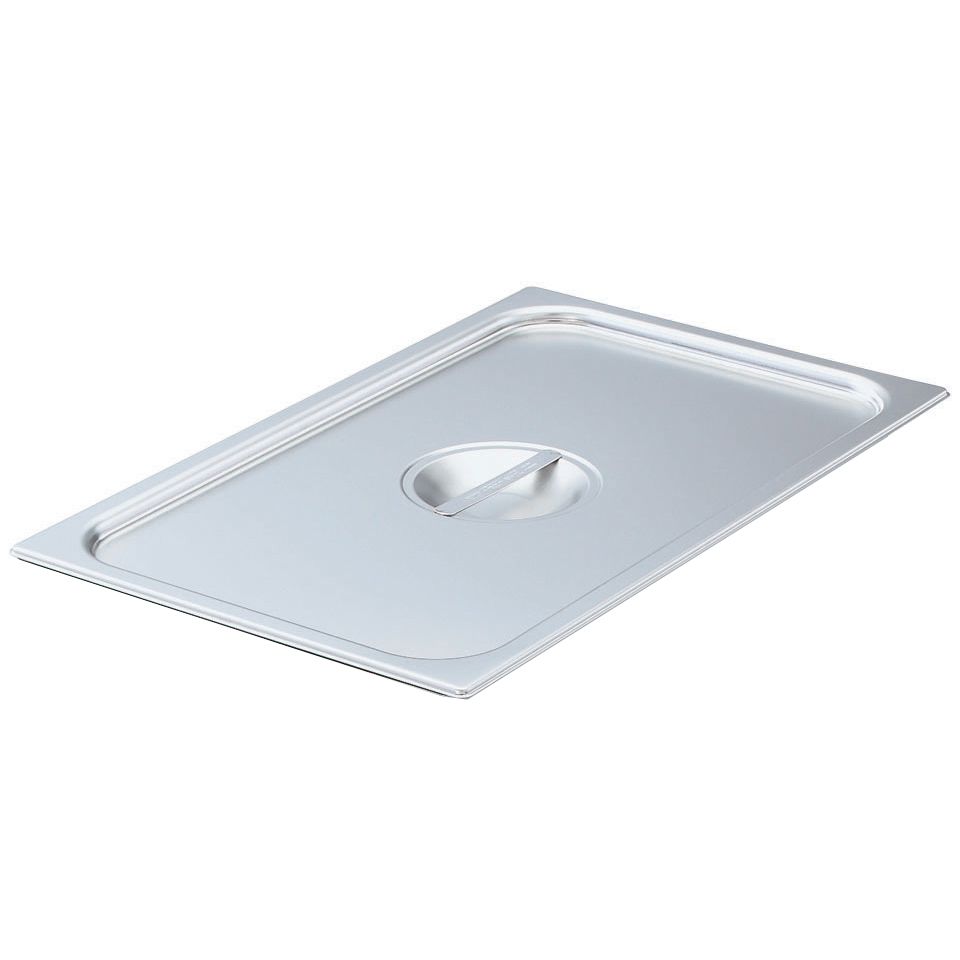

		Solid S/S Full Size Pan Lid Item #: 100004
$15.44

		Cambro Solid Black Camwear® 10" Buffet Spoon Item #: 106515
$2.88

Description
Specifications
Literature
Reviews
Q & A

APW Wyott 58-1/2" Top Mount Hot Food Well w/ Controls, HFWAT-4

The HFWAT-4 - 58-1/2" Heavy-Duty Top mount Rectangular Drop-In Food Wells (multi-wells) designed for direct installation in metal or wood countertops by plugging directly into an existing outlet. Hot food wells are designed to accommodate standard size steamtable pans and the control box is mounted directly to bottom of unit. Well is constructed of deep-drawn 20 gauge Type 304 stainless steel, above countertop with 20 gauge aluminized outer housing with sides and bottom fully insulated. Unit is heated by a tubular heating element and designed in a "W-shape" for even heat distribution to pan base. The element is mounted under well and secure by aluminized deflector shield for maximum efficiency.
Standard Features:

20 gauge Deep-Drawn Type 304 Stainless Steel Well Pans
Easy Access to Heating Elements
Compact Housing - Overall Depth 8-11/16" and 11-1/2" and 11-1/2" in Non-Control Area and 12-7/10" in the Attached Control Area
Without Drain
Holds (4) 58-1/2" x 23-7/16" Pans
Large Indicating Pilot Light
Simplified Construction Reduces Installation Time and Significantly Reduces On-Site Electrical and Plumbing Costs
Unitized Electrical Wiring for Single Power Hookup
Individual Thermostatic Controls
Unit Standard with APW Wyott E-Z Locks on all Four Exterior Sides for Easy Installation
Electric Cord and Plug for Easy Installation
Outside Dimensions: 12-3/4" x 58-1/2" x 23-7/16" (HxWxL)
Cut-Out Dimensions: 57-3/8" x 22-1/2" (WxD)
208V / 3400W / 16.3Amps
NSF, UL Certified
1 Year Limited Warranty
Model #: HFWAT-4

Product Name	APW Wyott 58-1/2" Top Mount Hot Food Well w/ Controls, HFWAT-4
Short Product Description	HOT FOOD WELL UNIT, DROP-IN, ELECTRIC, TOP MOUNT WITH ATTACHED INDIVIDUAL THERMOSTATIC CONTROLS, WET OR DRY TYPE WITHOUT DRAINS, FOUR-PAN SIZE FOR 12
Product ID	596959
Manufacturer Name	APW Wyott
Model Number	HFWAT-4
Length	23.44 in
Width	58.5 in
Height	12.71 in
Weight	98.0 lb
Cross Reference ID	APW-HFWAT-4, APW-HFWAT4, HFWAT-4, 596959
Hazmat	N
Oversize	N
Return To Manufacturer	Y
Assembly Required
CUL Approved	Y
Energy Star Rating	92.5
Ground Only	N
Material	Stainless Steel
Mfg Part #	HFWAT-4
Min Volume Capacity
Plug Type	L6-30P
UL Approved	Y
Volts	208
Warranty	1 Year Limited Parts and Labor Warranty
NSF Approved	Y

Spec Sheet

Manual

Write a Review

There are no reviews at this time. Be the first to review this product!

Ask a Question

There are no questions at this time. Be the first to ask a question about this product!

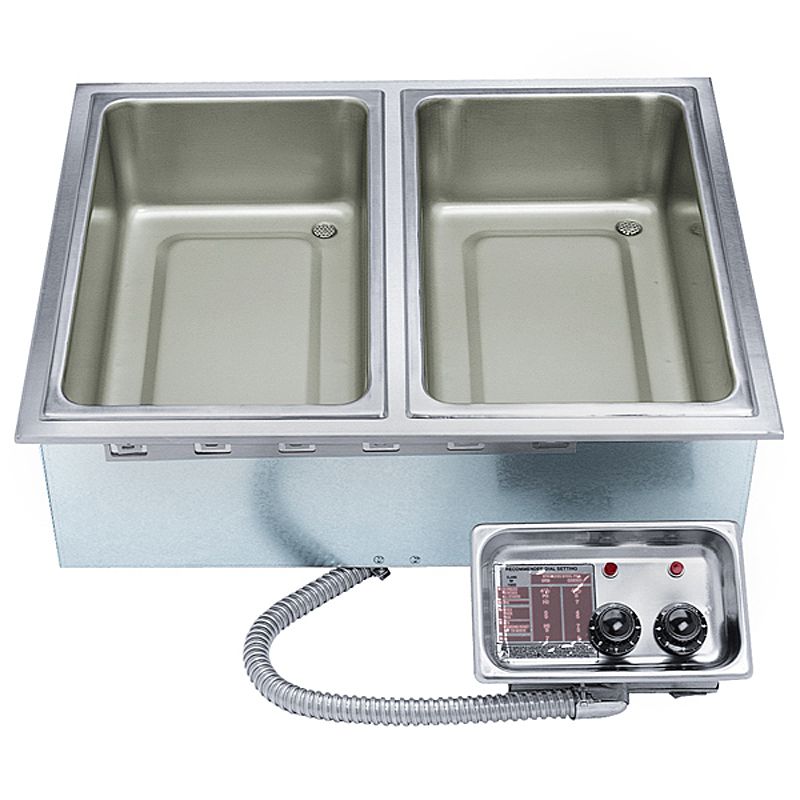

APW Wyott 44-1/8" Top Mount Multi Hot Food Well w/ Drain, HFW-3D Item Number: 146249 Model Number: HFW-3D

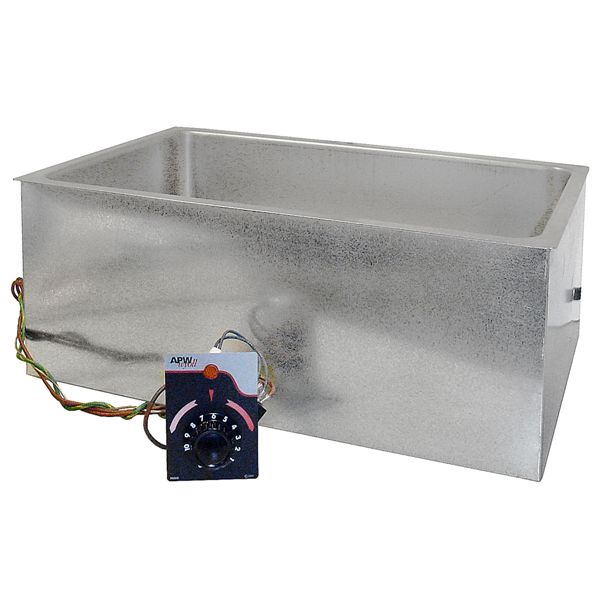

APW Wyott Insulated Hot Food Well Bottom Mount, Sq. Corners, BM-80C Item Number: 160023 Model Number: BM-80C

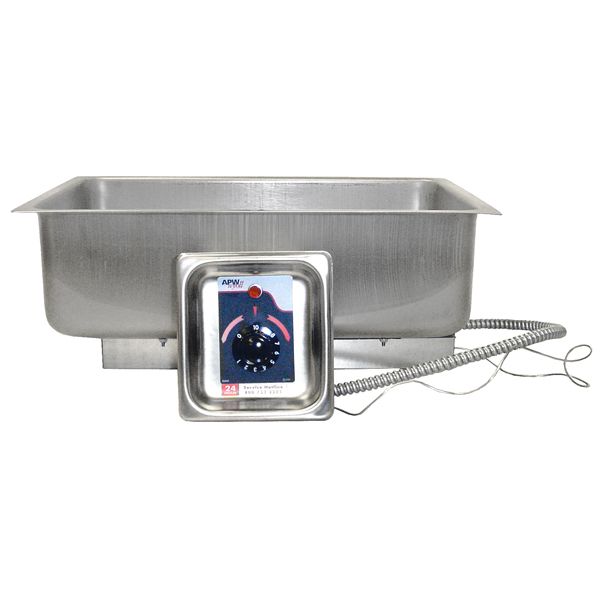

APW Wyott UL Listed Hot Food Well Unit, w/Drain, BM-30D UL, Item Number: 180897 Model Number: BM-30D UL

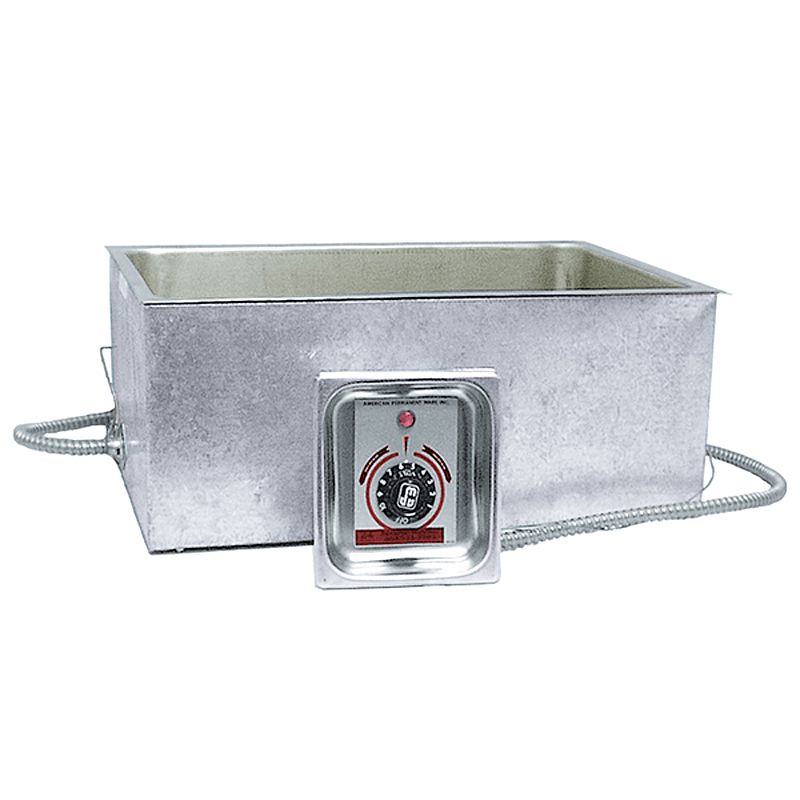

APW Wyott UL Listed Insulated Hot Food Well w/ Drain, BM-80CD UL Item Number: 204585 Model Number: BM-80CD UL
