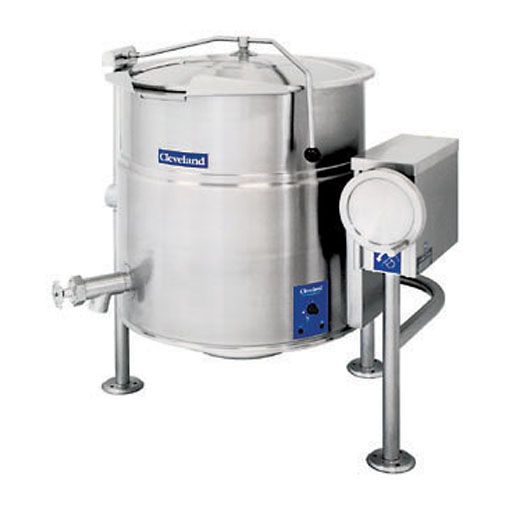

Cleveland Range KEL80T Electric 80 Gallon Tri-Leg Tilting Kettle

Item #: 495432

Model #: KEL80T Manufacturer: Cleveland Range

$26350.63
$44,380.00 List Price

Factory Ship
Add to Cart
Add to WishList

Cleveland Range steam kettles are dependable, easy to use, and easy to clean. The tilting feature plus the large pouring lid make it easy to empty the contents. It can be bolted to the floor for safety when in use or emptying.
  • Model #: KEL80T
  • Self-contained, easily installed - needs only an electrical hook-up
  • Steam jacket filled with treated water, venting and/or refilling is not required
  • Accurate, consistent solid state temperature controls - less than ±1° C variance
  • Operating temperature range from 145° - 260° F
  • LED indicator for heat cycle and low water
  • Power ON/OFF switch
  • Adjustable temperature control dial
  • Water resistant controls, splash-proof construction
  • Large pouring lip for high capacity and chunky products
  • Re-enforced rolled rim design prevents damage to kettle rim
  • Welded-in heating elements, (holds vacuum better, won't leak or loose water)
  • Kettle and all exterior surfaces are of type 304 stainless steel with an #4 finish
  • Rear mounted easy access pressure gauge and pressure relief valve to prevent tampering
  • Color coded easy to read pressure gauge with "green" and "vent air zone"
  • 50 psi steam jacket rating for higher cooking temperatures
  • 50 psi safety valve
  • Solid state water level control (no sight glass gauge to break or leak)
  • Splash proof element cover with a double gasket seal
  • Tilt mechanism of roller bearings and case hardened self-locking worm and segment gear
  • 1-5/8" O.D. tri-leg supports with level adjustable feet for floor bolting
  • Standard voltage is 208-240 volts, 60 Hz, 3-phase, 3-wire
  • Typical approvals include UL., CSA, CE, NSF and ASME
  • Dimensions (H x W x D) 52-1/8" x 48-1/2" x 401/4"
  • Capacity: 80 gal
  • Ship Weight: 470 lbs.
  • One Year Parts and Labor Warranty
Product Name Cleveland Range KEL80T Electric 80 Gallon Tri-Leg Tilting Kettle
Product ID 495432
Manufacturer Name Cleveland Range
Model Number KEL80T
Length 40.25 in
Width 48.5 in
Height 52.1 in
Weight 470.0 lb
Cross Reference ID 190-KEL80T, 390KEL80T 208/2403
Hazmat
Oversize
Return To Manufacturer
CSA Approved
Material Stainless Steel
NSF Approved
UL Approved
Volts 208-240
Volume Capacity 80 gal
Mfg Part # KEL80T
CE Approved
Warranty Details One Year Parts and Labor Warranty
There are no reviews at this time. Be the first to review this product!
1 Questions Asked
Page 1 of 1      - 1 -
By: me
From: honolulu, hawaii
Jul 2, 2013
Question:

what are the dimensions of this product, height, width, depth

Answer:

Hello, due to the construction of this product, there are several specific dimensions available for it. A product sheet will be attached for this product for a visual of how it is measured. This will be under the Literature tab for this product. Thank you!
