Jackson AJX-54 Conveyor High Temp Single Steam Tank Dishwasher

Jackson AJX-54 Conveyor High Temp Single Steam Tank Dishwasher
Item #: 477348

Model #: AJX-54CS	Manufacturer: Jackson Machine

$22792.00
$29,600.00 List Price

Qty:
Each

FACTORY-SHIP

Ask a Question

Review this Item

Companion Items

		Carlisle Comfort Curve™ Bus Box, White Item #: 220193
$11.16

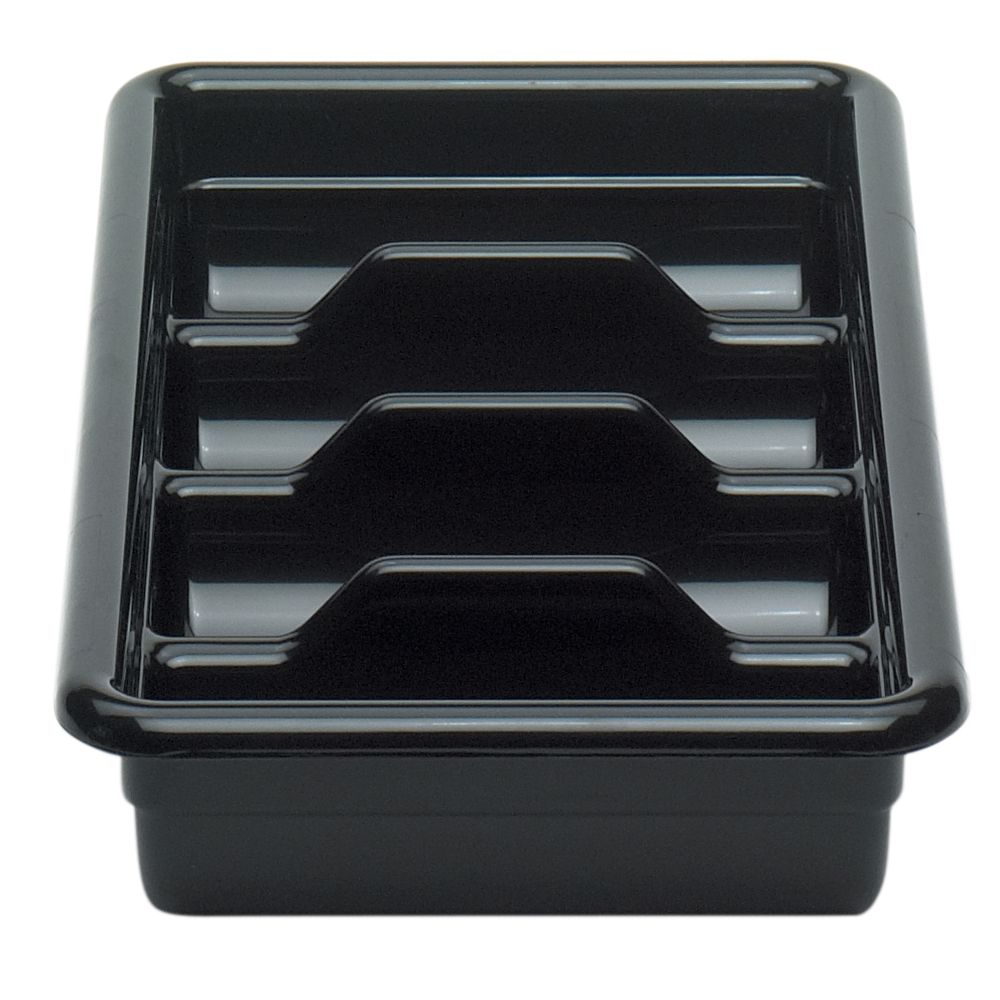

		Cambro Black 4-Compartment Regal Cutlery Cambox® Item #: 105173
$17.31

Description
Specifications
Literature
Reviews
Q & A

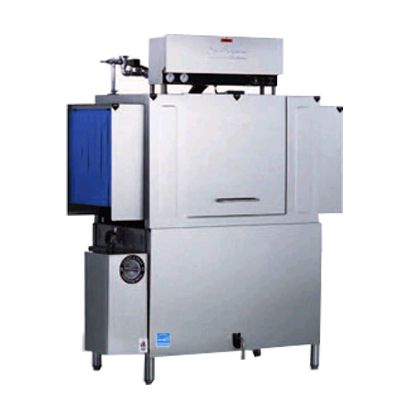

Jackson AJX-54 Conveyor High Temp Single Steam Tank Dishwasher

The Jackson AJX-54 is proven to last under extreme kitchen conditions. This conveyor dishwasher has a standard height of 25" that accommodates large sheet pans and mixing bowls. This conveyor is dual rated for both high-temp and chemical sanitizing. High-temp cleans 225 racks in 1 hour using only .68 gallons of water per rack and chemical sanitizing clean 209 racks per hour using .78 gallons of water. The AJX-54 has the exclusive Energy Guard™ control system that will cut your energy costs. The AJX-54 has the Adjust-a-Peak™ adjustable conveyor speed that can handle any soil level. This dishmachine is available in 44", 54", 66" (44" plus 22" prewash), 76" (54" plus 22" prewash), 80" (44" plus 36" prewash) and 90" (54" plus 36" prewash) models. This model is available in electric or steam input type.

Specifications:

Width: 70"
Depth: 25"
Height: 75-1/2"
Weight: 741 lbs
Volts: 208-230/60/3
Power Input Type: Steam
UL approved
NSF approved
Efficiency Rating: 1.03%

Additional Information:

Heavy 304 stainless steel construction
Single steam tank heat conveyor dishwasher
High temperature and chemical sanitizing
Energy Star™ rated
Adjust-A-Peak™ adjustable conveyor
Exclusive Energy Guard™ control system
Built-in pressure regulator comes standard
Optional B.O.S.S. (built-in onboard sanitation system) booster heater available
Stainless steel strainer pans and scrap bucket
Fully automatic
Electromechanical controls
Door safety switch(s)
Front dress panel
Exhaust vent fan control
Splash shields
Strikeplate table limit switch
Quiet self-draining stainless steel wash pump
Externally operated drain lever
Adjustable bullet feet
Model #: AJX-54CS

Product Name	Jackson AJX-54 Conveyor High Temp Single Steam Tank Dishwasher
Short Product Description	DISHWASHER, CONVEYOR TYPE, HIGH TEMPERATURE SANITIZING, SINGLE TANK DESIGN (WASH), ADJUSTABLE CONVEYOR SPEED, APPROXIMATELY 225 RACKS/HR, STEAM TANK HEAT
Product ID	477348
Manufacturer Name	Jackson Machine
Model Number	AJX-54CS
Length	86.0 in
Width	40.0 in
Height	78.0 in
Weight	741.0 lb
Cross Reference ID	AJX-54CS
Hazmat	N
Oversize	N
Return To Manufacturer	Y
Country Of Origin	United States
Mfg Part #	AJX-54CS
Energy Star Rating	Y
Material	Stainless Steel
NSF Approved	Y
UL Approved	Y
Volts	208-230/60/3
Each Depth	25
Each Height	75.5
Each Width	70
Each Weight	741
Warranty	Y

Spec Sheet

Operating Manuals

Installation Guides

Write a Review

There are no reviews at this time. Be the first to review this product!

Ask a Question

There are no questions at this time. Be the first to ask a question about this product!
