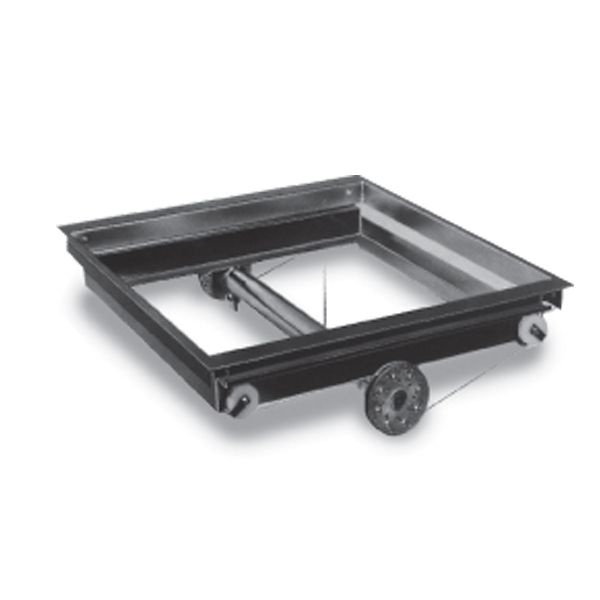

APW Wyott, Drop-In Rack Lowerator® Dispenser 16x20, DI-1620

The Di Drop-In Rack Lowerator® dispenser uses a self-leveling carrier mechanism to dispense cups, glasses or trays in a serving line or at a beverage service point. The unit is easily installed by cutting an opening in the countertop and dropping the dispenser in place. The welded flange supports the unit on the countertop. Made of Stainless Steel, the dispenser is lightweight and easily removed for cleaning. The dispensing mechanism is field adjustable for a wide range of loads. Standard units adjust from 3.5 lbs. per inch to 10 lbs. per inch load rate. The stainless steel carrier, which cannot bind or tip, is suspended at four corners by nylon-coated, brained metal cables fed off power drums on two sides. This design keeps the top-most tray or rack at a selected dispensing level. The positive, braided cable-stop limits travel of carrier to 24", protecting the mechanism from overextensions.
Standard Features:

Self-Leveling Carrier Mechanism Dispenses Cups, Glasses or Trays
Welded Flange Supports the Unit on the Countertop
Constructed of Lightweight Stainless Steel for Easy Removal and Cleaning
Design Keeps the Top-Most Tray or Rack at a Selected Dispensing Level
Cable-Stop Limits Travel Of Carrier, Protecting the Mechanism from Overextension
Capacity: Up to 11 Dozen Cups, to 14 Dozen Glasses, to 130 Trays
Carrier Travel: 24"
Vertical Clearance Beneath Top: 29"
Load Capacity: 200 Pounds
Storage Under Countertop: 25"
Flange Dimensions: 25" x 19-1/4" (WxL)
Counter Cut-Out: 24" x 18-1/4" (LxW)
UL NSF Listed
1 Year Warranty
Model #: DI-1620

Product Name	APW Wyott, Drop-In Rack Lowerator® Dispenser 16x20, DI-1620
Short Product Description	DISPENSER, TRAY, DROP-IN TYPE, SINGLE SELF-ELEVATING TRAY PLATFORM, FOR 16" X 20" TRAYS, STAINLESS STEEL CONSTRUCTION, CUTOUT DIMENSIONS 24"W X 18-1/4
Product ID	446809
Manufacturer Name	APW Wyott
Model Number	DI-1620
Length	0.0 in
Width	0.0 in
Height	0.0 in
Weight	24.0 lb
Cross Reference ID	DI-1620, APW-DI1620, 446809
Hazmat	N
Oversize	N
Return To Manufacturer	Y
Material	Stainless Steel
Mfg Part #	DI-1620
NSF Approved	Y
UL Approved	Y
Warranty	1 Year Warranty
