APW Wyott HHPS-424 Cookline Gas Step-Up (4) 30000 BTU Burner Hot Plate

Item #: 408128

Model #: HHPS-424 Manufacturer: APW Wyott

$1258.91
$2,454.00 List Price

Factory Ship
Add to Cart
Add to WishList

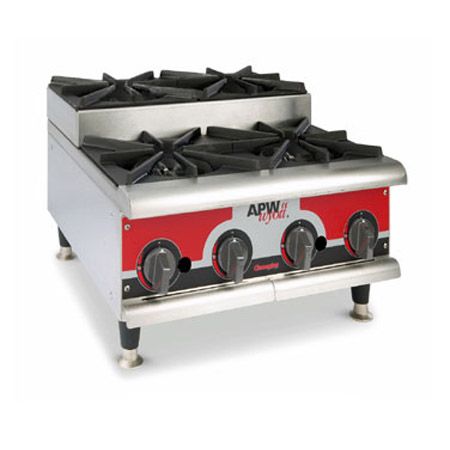

APW Wyott 24" Heavy Duty Cookline Step Hot Plate, HHPS-424


The HHPS features a 3" step-up on rear burner(s). The Heavy-Duty Stepped Hot Plate with a low profile design are only 13-1/8" tall to range surface making them ideal for use on refrigerated cabinets or countertops. The Heavy-Duty Hot Plates are designed to mix and match with the Heavy-Duty Charbroilers and Griddles The Heavy-Duty Stepped Hot Plate feature exceptionally heavy, removable, individual cast iron top grates. Four widths are available including a 12" wide two-burner, 24" wide four-burner, 36" wide six burner and a 48" wide eight burner. The HHPS Series features two high-performance, cast iron 30,000 BTUH burners located every 12" with lift-off burner heads for easy cleaning and with individual, operator-controlled valves. Patented valve has a low setting of only 5,000 BTU for simmering and energy savings. The interior combustion chamber is heavy-duty heat resistant 12- and 16-gauge steel, and is hand-welded for strength and durability. Standard features include all stainless steel and aluminized steel exterior, stainless steel landing ledge, optional stainless steel backsplash and large capacity, slide-out stainless steel crumb tray. Additional features include individual 3/4" NPT rear gas connection in natural or LP gas, pressure regulator and 4" NSF approved legs with adjustable bullet feet.
Standard Features:
  • 30" Deep Range Top
  • Heavy Gauge, Hand-Welded, Heat-Resistant Steel Combustion Chamber
  • 30,000 BTUH Burners - Two Per Every 12"
  • Up to 240,000 Total BTUH in Natural or 200,000 in LP
  • All Steel Exterior and Stainless Steel Landing Ledge
  • Low Profile, Counter Top Design - Only 13-1/8" to Range Surface
  • Stainless Steel, Slide-Out Crumb Tray
  • Heavy-Duty 4" NSF Approved Chrome Legs with Bullet Feet
  • 180° Individually Operator Controlled Burner Valves for Precise Control & Low-Flame Standby Position
  • 3/4" NPT Rear Gas Connection
  • Gas Specifications: 4 Burners, 120,000 BTUH Total, 35.15 KW
  • Cooking Surface Dimensions: 28-1/2" x 24" (HxW)
  • Overall Dimensions: 16-1/4" x 24" x 30-1/4" (HxWxD)
  • CUL, UL Certified
  • 1 Year Limited Warranty
  • Model #: HHPS-424
Product Name APW Wyott HHPS-424 Cookline Gas Step-Up (4) 30000 BTU Burner Hot Plate
Product ID 408128
Manufacturer Name APW Wyott
Model Number HHPS-424
Length 30.25 in
Width 24.0 in
Height 16.25 in
Weight 320.0 lb
Cross Reference ID APW-HHPS424, HHPS-424, 408128
Hazmat
Oversize
Return To Manufacturer
CUL Approved
Material Stainless Steel
Mfg Part # HHPS-424
UL Approved
Warranty 1 Year Limited Parts and Labor Warranty
Spec Sheet
Spec Sheet
