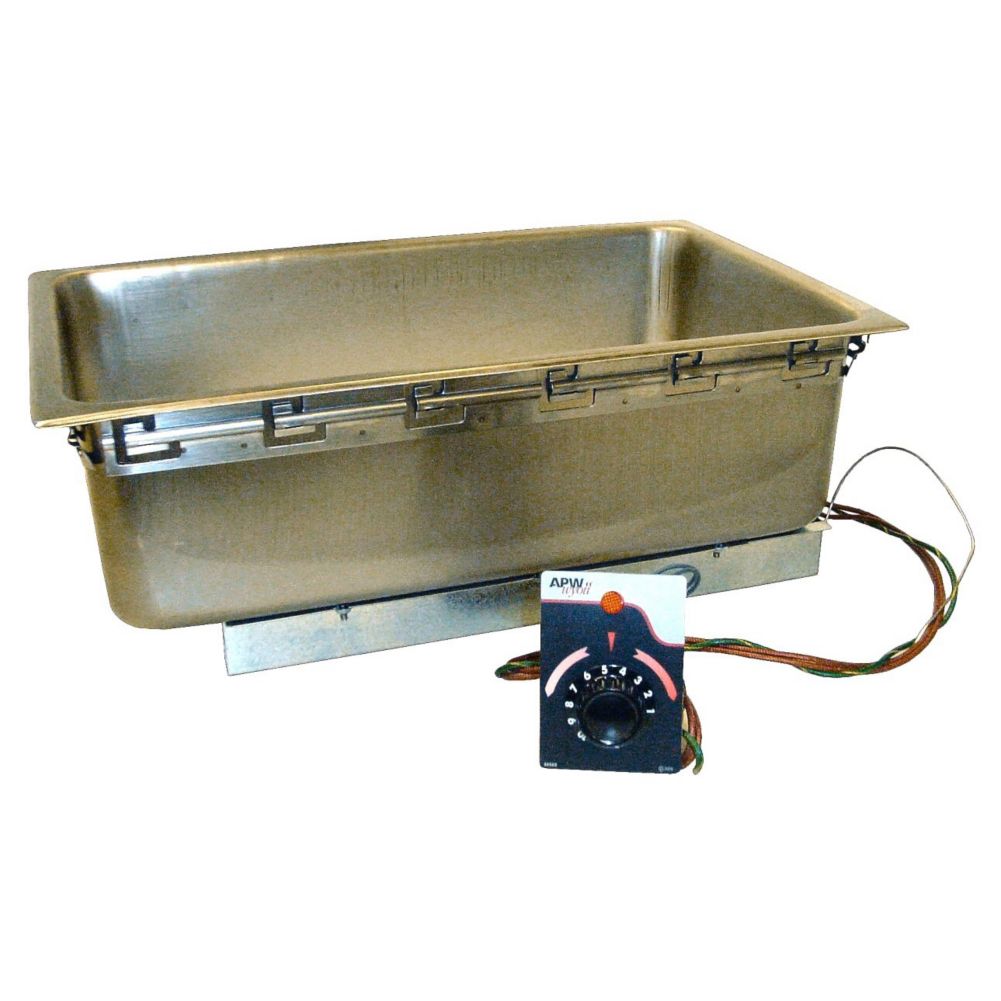

APW Wyott TM-90D Electric Uninsulated Drop-In Food Warmer w/ E-Z Lock

Item #: 381001

Model #: TM-90D Manufacturer: APW Wyott

$616.00 List Price
Factory Ship
Add to Cart
Add to WishList

Companion Items

Vollrath® 78204 S/S Satin Finish 11 Qt. Inset
Vollrath® 78204 S/S Satin Finish 11 Qt. Inset

Item #: 100900

Add to Cart

The TM-90D heavy-duty top mount Un-insulated Rectangular Drop-In Hot Food Well us designed for installation in metal, or wood countertop if optional wood mounting kit is provided. Hot Food Wells is designed to accommodate standard size steam table pans. Well is constructed of deep-drawn 20 gal. Type 304 stainless steel, above countertop with 20 gal. aluminized outer housing with sides and bottom fully insulated. Unit is heated by a tubular heating element shaped in serpentine fashion for even heat distribution to pan base. Element is mounted under well and secured by aluminized deflector shield for maximum efficiency. Entire heat assembly is covered with galvanized housing with layer of 1" thick fiberglass insulation fixed to bottom of pan wit threaded studs for ease of service. Unit standard with APW Wyott E-Z Locks on all four exterior sides for easy installation.
Standard Features:
  • 20 gal. Stainless Steel
  • Units May Be Used WET or DRY (Wet Use Offers Best Results)
  • Easy Access to Heating Elements
  • Thermostatic Control with 36" Capillary (Effective Length 26")
  • Compact Housing - Overall Depth 8-5/16"
  • Standard E-Z Lock Reduces Installation Time
  • Large Indicating Pilot Light
  • Comes with Drain
  • Outside Dimensions: 8-15/16" x 13-5/8" x 21-5/8" (HxWxL)
  • Inside Dimensions: 6-1/4" x 11-7/8" x 19-7/8" (HxWxL)
  • Cutout Dimensions: 12-3/4" x 20-3/4"
  • 120V / 750W / 6.3Amps
  • UL, CSA, Certified
  • 1 Year Limited Warranty
  • Model #: TM-90D
Product Name APW Wyott TM-90D Electric Uninsulated Drop-In Food Warmer w/ E-Z Lock
Product ID 381001
Manufacturer Name APW Wyott
Model Number TM-90D
Length 21.63 in
Width 8.31 in
Height 13.63 in
Weight 23.0 lb
Cross Reference ID 381001, APW-TM90D, TM-90D
Return To Manufacturer
CSA Approved
Material Stainless Steel
Mfg Part # TM-90D
UL Approved
Volts 120
Warranty 1 Year Parts and Labor Warranty
Spec Sheet
Spec Sheet

There are no reviews at this time. Be the first to review this product!
1 Questions Asked
Page 1 of 1      - 1 -
From: columbus, ohio
May 28, 2010

can you get one of these units 208v/240v


This item has a 208/240voltage available. You need to call in to 1(866)-634-8927 so that it can be special ordered.
