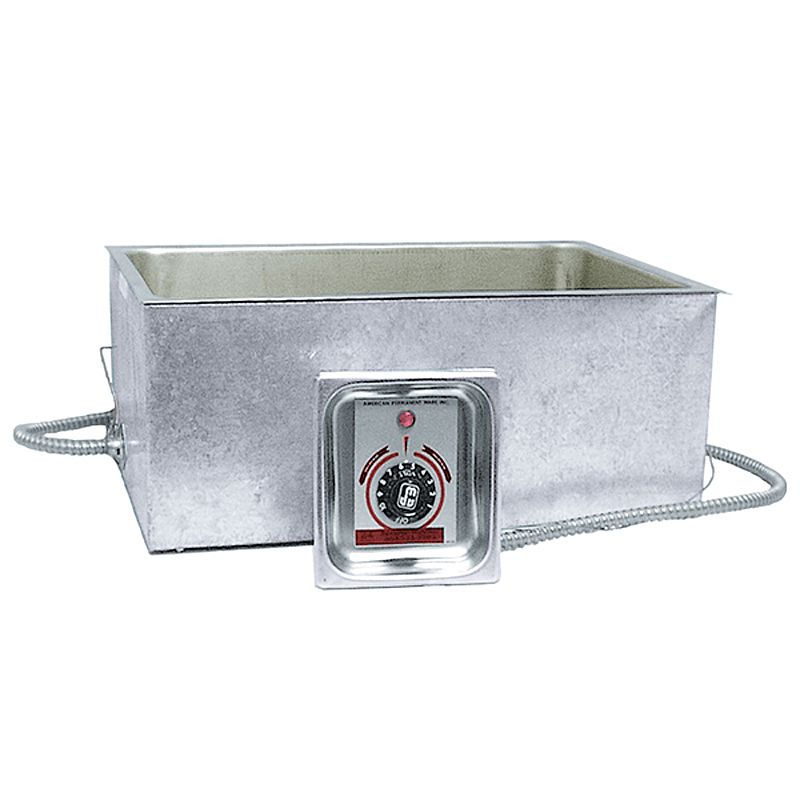

APW Wyott BM-80 UL Bottom Mount Electric Built-In Hot Food Well Unit

Item #: 284070

Model #: BM-80 UL Manufacturer: APW Wyott

$668.00 List Price
Factory Ship
Add to Cart
Add to WishList

The BM-80 Ul Heavy-Duty bottom mount, insulated rectangular drop-in hot food well is designed for installation in metal countertop. Available in a wide variety of wattage power to accommodate your needs, whether it is for High Performance, Fast Recovery power or Energy Efficient, Lower wattage (750 watts) power. All bottom mounted food wells are heated by tubular calrod heat element shaped in serpentine fashion for even heat distribution to pan base. Element is mounted under well and secured by an aluminized reflector shield for maximum efficiency and thermostatically controlled for fast heat recovery. This unit in includes complete UL listed construction including electrical conduit, bezel and control box.
Standard Features:
  • Constructed of Deep-Drawn 20 Ga. Type 304 Stainless Steel
  • Entire Heat Assembly Covered with Inspection Housing with Layer of 1-1/2" Thick Compressed Fiberglass Insulation
  • Without Drain
  • Unit May Be Used Wet or Dry (Wet Use Offers Best Results)
  • Easy Access to Heating Elements
  • Thermostatic Control with 36" Capillary (Effective Length 26"
  • Large Indicating Pilot Light
  • Multiple Units Can Be Installed in Same Table or Counter
  • Multiple Wattages and Voltage Choices
  • Overall Outside Dimensions: 8-5/16" x 13-13/16" x 21-3/4" (HxWxL)
  • Overall Inside Dimensions: 6-1/4" x 13-3/16" x 20-1/8" (HxWxL)
  • Cutout Dimensions: 11-7/8" x 19-7/8" (WxL)
  • Includes Electrical Conduit, Bezel and Control Box
  • UL, CSA, RU, UL Certified
  • 1 Year Limited Warranty
  • Model #: BM-80UL
Product Name APW Wyott BM-80 UL Bottom Mount Electric Built-In Hot Food Well Unit
Product ID 284070
Manufacturer Name APW Wyott
Model Number BM-80 UL
Length 21.75 in
Width 13.81 in
Height 8.31 in
Weight 24.0 lb
Cross Reference ID APWFD42HI, APW-FD42HI, APW-FD-42H-I, 789986, FD-42H-I
Return To Manufacturer
CSA Approved
CUL Approved
Energy Star Rating
Ground Only
Material Stainless Steel
Mfg Part # FD-42H-I
UL Approved
Volts 120
Warranty 2 YEAR Warranty on Heating Elements and 1 1 Year Warranty Parts and Labor
CE Approved
NSF Approved
Spec Sheet
Spec Sheet
