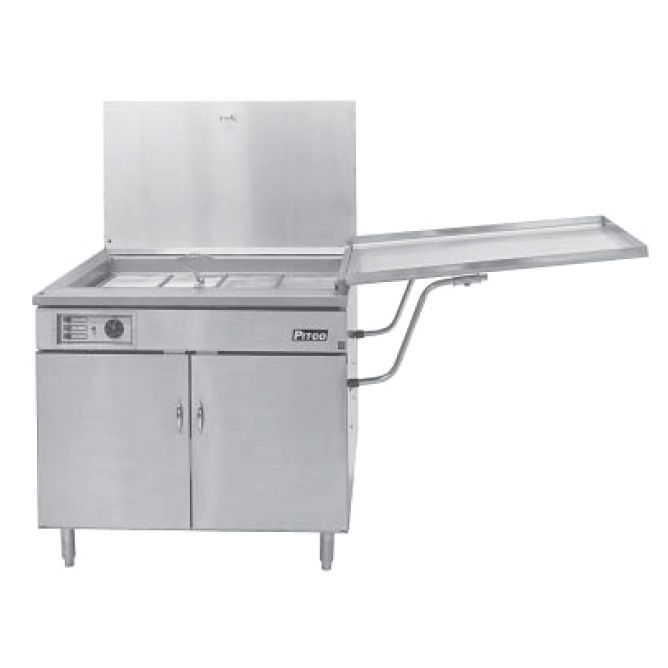

Pitco® Electric Donut Fryer with 150 Lb. Oil Capacity
This Pitco® electric donut fryer has a temperature limit that will shut off power to the heating elements is the temperature exceeds the upper limit. This fryer also has a mechanism to tie-in with a fire protection system. Both these features provide a safe way to prepare your favorite donuts.
Standard Features:
- Model #: E24
- Tank - stainless steel construction
- Cabinet - stainless front, door, back and sides
- Immersion type heating elements with high temperature sheath
- Provision for tie-in with fire protection systems
- Power to heating elements shuts if the fryer temperature exceeds upper limit
- Three position switch (OFF/ON/START) for fryer control
- Two position switch (MELT ON/MELT OFF) for melt cycle control
- On/Off Switch with white power ON light
- Amber temperature light indicates when elements are heating
- Electric thermostat maintains selected temperature between 200°F and 400°F
- Front 1" NPT drain, for quick draining
- Selected fryer operating mode (on or melt cycle) from the front control switch
- Drainboard (also used as fryer cover)
- Hinged wire mesh submerger screen with safety grid handles

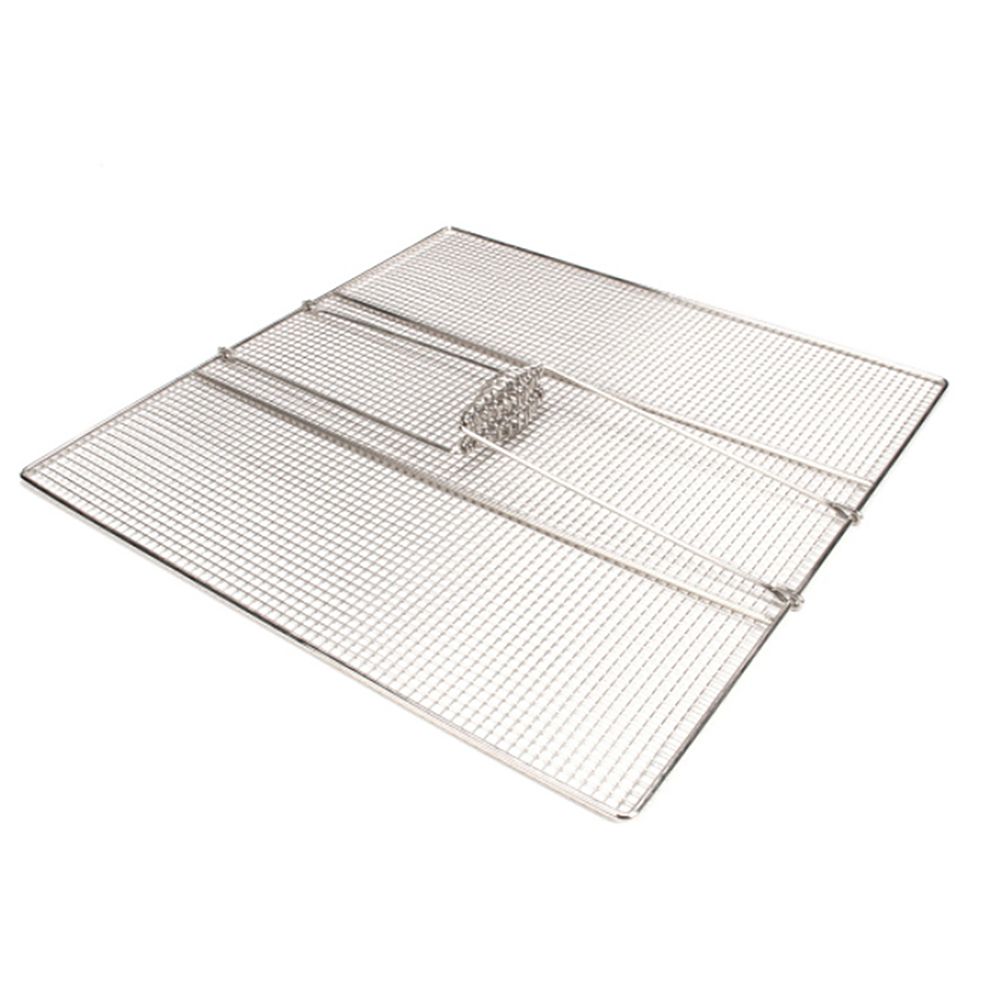

- Two nickel plated wire mesh screens with handles
- Wire mesh tube screen
- 6" adjustable legs
- One drain extension
- One drain line clean-out rod
- (2) Donut turner sticks
- 80 donuts per hour
- Frying Area: 24" x 24" x 4-1/4"
- Oil Capacity: 150 lbs of oil
- Shipping Dimensions: 56"H x 35"W x 47"L
- Ship Weight: 400 lbs
- NSF and UL Listed, MEA Approved, and CSA Certified
