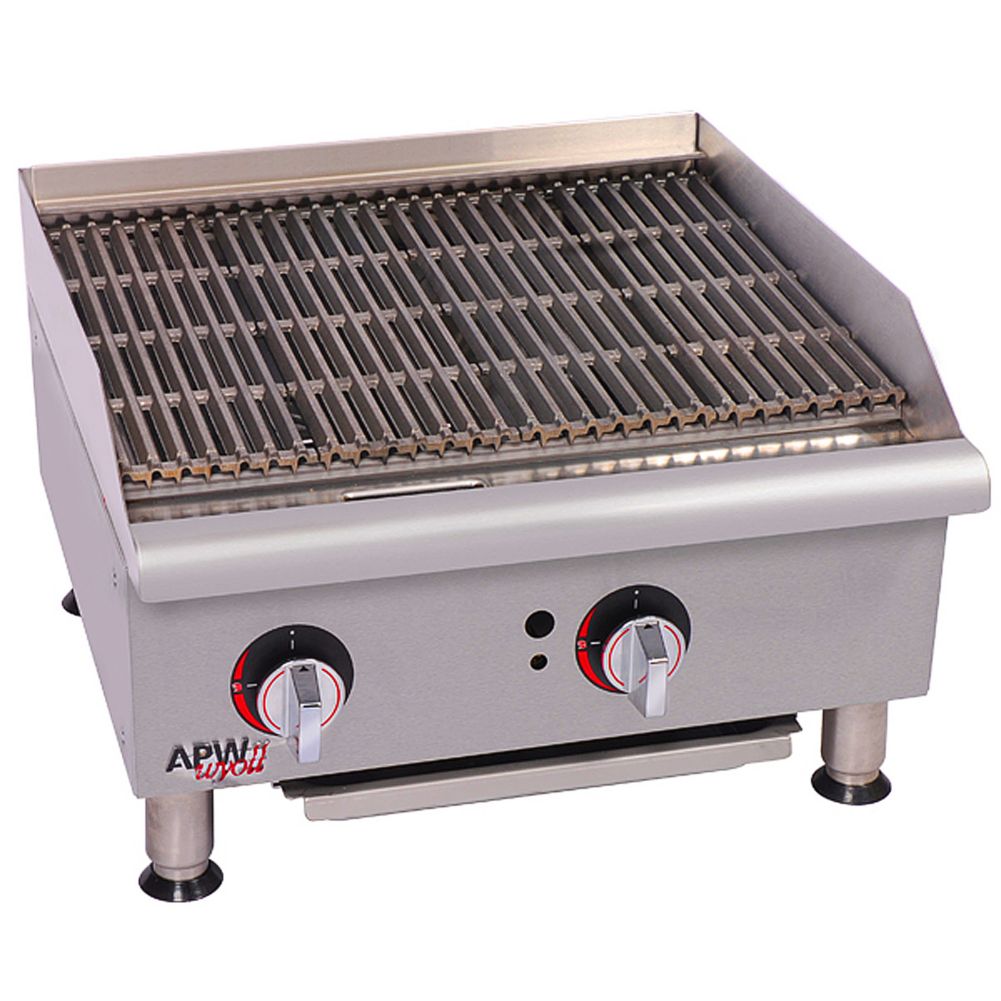

APW Wyott 24" Gas Radiant Champion Charbroiler, GCB-24H

APW Wyott 24" Gas Radiant Champion Charbroiler, GCB-24H
Item #: 257665

Model #: GCB-24H	Manufacturer: APW Wyott

$1052.99
$1,722.00 List Price

Qty:
Each

FACTORY-SHIP

Ask a Question

Review this Item

Companion Items

		Johnson-Rose Stainless Steel Turner / Scraper Item #: 249318
$5.15

		3M™ Grill-Brick™ 1-Case Griddle Cleaner Item #: 610054
$30.55

		Lodge Logic Rectangular Grill Press w/ Cool Grip Handle Item #: 678505
$16.94

Description
Specifications
Literature
Reviews
Q & A

APW Wyott 24" Gas Radiant Champion Charbroiler, GCB-24H

The GCB-24H is compact in size and powerful 80,000 BTU/Hr. total output, the GCB-24H 24" Radiant Charbroiler is perfect for take out restaurants, snack bars, or concessions stands with limited counter space, giving you ample space to cook hamburgers, chicken, fish or even kabobs. This unit has 23-3/4" x 18" cooking surface, with (2) "U" burners, 40,000 BTU/hr. each, total 80,000 BTU-hr. input with two high-low controls. It's special high temperature stainless steel radiant's and thick, cast iron "steak char" grate provide even heat distribution and stand up to years of high output char grilling. The pilot light on the GCB-24H charbroiler can be easily lit and adjusted through openings in the front of the unit. Easy to clean and features an easy access bottom mounted grease collection pan, removable top grates, and self-cleaning radiant's.
Standard Features:

Increase Performance in Cooling
Stainless Steel Construction on Front Panel and Top Skirt
Welded Construction in Frame
Thick, Cast Iron "Steak Char" Grates Stand Up to Years of High Output Char Grilling
Special High Temperature Stainless Steel Radiant's
Front Access Panels for Easy Adjustment
Extended Bull-Nose Front
Gas Connections Use 3/4" NPT Pipe
4" x 1" Grease Chute Drains into Grease Drawer
Stainless Steel Grease Collector Drawer
Two "U" Burner, Total 80,000 BTU/Hr. Two High-Low Manual Control
Dimensions: 15-1/2" x 24" x 25-57/64" (HxWxD)
Cooking Surface Dimensions: 24-3/4" x 18" (HxD)
Two Burners, 40,000 BTU/Hr. Ea.
Two Manual High-Low Controls
Propane is 72,500 BTU/Hr.
80,000 BTU/Hr.Total
CSA, UL, CE Listed
3 Year Limited Warranty
Model #: GCB-24H

Product Name	APW Wyott 24" Gas Radiant Champion Charbroiler, GCB-24H
Short Product Description	CHAMPION CHARBROILER, GAS, COUNTERTOP, 24" W X 25" D (O.A.), THIN-LINE CAST IRON GRATES REMOVABLE IN 6" SECTIONS, HEAVY DUTY S/S RADIANTS, S/S FRONT,
Product ID	257665
Manufacturer Name	APW Wyott
Model Number	GCB-24H
Length	25.0 in
Width	24.0 in
Height	15.5 in
Weight	122.0 lb
Cross Reference ID	GCB-24H, APW-GCB24H, 257665, APWGCB24H, 45-GCB-24H
Hazmat	N
Oversize	N
Return To Manufacturer	Y
Assembly Required
Brand Name	Champion
CSA Approved	Y
CUL Approved	Y
Energy Star Rating	85
Ground Only	N
Material	Stainless Steel
Mfg Part #	GCB-24H
UL Approved	Y
Warranty	3 Year Limited Warranty
Gas Type

Spec Sheet

Manual

Write a Review

There are no reviews at this time. Be the first to review this product!

Ask a Question

There are no questions at this time. Be the first to ask a question about this product!
