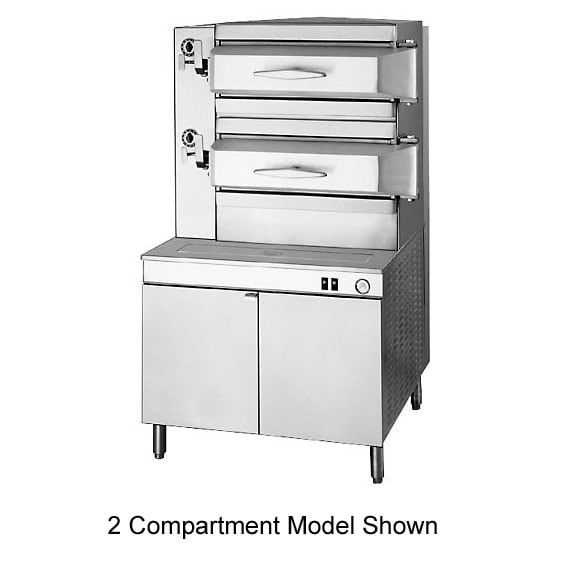

Cleveland Range PGM3003 Gas Pressure Steamer with 3 Compartments

Item #: 132316
Model #: PGM3003
Manufacturer: Cleveland Range

This Cleveland Range gas pressure steamer has a pressure gauge to control the compartment pressure and a electronic spark ignition for easy start‐up. It has 3 compartments that triples your cooking capacity allowing for bulk food cooking.

$31,263.65
Availability

Factory Ship

 Each
Add to Cart

Free Shipping on orders over $500

– Excludes Furniture & Clearance –
Description
+ -
This Cleveland Range gas pressure steamer has a pressure gauge to control the compartment pressure and a electronic spark ignition for easy start‐up. It has 3 compartments that triples your cooking capacity allowing for bulk food cooking. These pressure steamers are an efficient way to keep up with the pace of you busy restaurant.
  • Model #: PGM3003
  • 3 Compartment
  • 5 psi Operating pressure in cooking compartments
  • Mechanical interlock prevents unlatching door while compartment is pressurized
  • One mechanical timer per compartment with audible signal
  • Thermostatic trap vents cooking compartment automatically
  • Steam inlet valves and exhaust valves interlocked for synchronous action
  • 8 psi compartment safety valve
  • Capacity per Compartment: (8) 12" x 20" x 2.5" deep cafeteria pans or (4) 18" x 26" bun pans
  • Heavy duty, free floating, cast aluminum compartment doors
  • Compartment door hinges have adjustable hinge pins and self‐lubricating bushings
  • Door gasket replaceable without tools
  • Pressure gauge for compartment operating pressure
  • Compartment slide racks are removable without tools, for easy cleaning
  • Type 430 stainless steel external enclosure, table top and eight gauge plate cooking compartments
  • Modular cabinet base with hinged doors
  • Gas‐fired steam generator with NickelGard and automatic water fill on start‐up
  • Automatic water level control system with low water power cut‐off circuit
  • Steam generator equipped with high‐limit pressure safety switch and safety valve
  • Automatic steam generator blowdown allows intermittent control, complete with additional manual drain valve
  • Steam generator with electronic spark ignition
  • Single cold water connection (no hot water required)
  • 6" Stainless steel legs with level adjustment and flanged feet
  • Gas pressure regulator and control valve
  • 60 hz, single phase
  • All major components are serviceable from the front of unit
  • Hazmat: No
  • Oversize: No
  • Each Width: 33.2
  • NSF Approved: Yes
  • UL Approved: Yes
  • CSA Approved: Yes
  • Warranty: One Year Parts and Labor Warranty
  • Each Length: 35.43
  • Each Height: 73.6
  • Volts: 115
Literature
+ -
Reviews
+ -
Write a Review

There are no reviews at this time. Be the first to review this product!
Q & A
+ -
Ask a Question
By: Stan
From: Honolulu, Hawaii

Aug 31, 2011
QUESTION
Would need to matchup a reverse osmosis system to the steamer, so would like to know the approximate water consumption of this unit Cleveland PGM3003.

ANSWER
The water consumption is 21.60 gallons per hour. Thank you.
By: Tima
From: Bellevue Wa

Jul 16, 2012
QUESTION
We have a 3/4" gas line. Is this steamer over rated due to the existing 1" line.

ANSWER
This unit can use either size piping, depending on the BTU of the boiler. "Boilers rated at less than 225,000 Btu require 3/4-inch 'PS gas supply piping, and boilers rated at 225,000 Btu or more require 1-inch II'S gas supply piping" Thanks!
