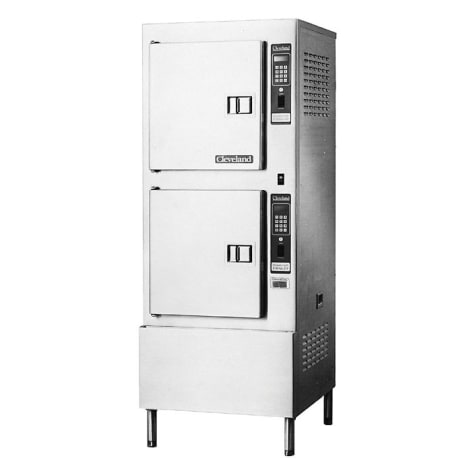

Cleveland Range 24CGA10 SteamCraft Ultra 10 Convection Steamer

Item #: 139993
Model #: 24CGA10
Manufacturer: Cleveland Range

SteamCraft® Ultra steamers features a patented Steam Jet system that provides high velocity steam without the use of fans. The easy to use controls provide instant steaming of foods for healthy dining.

Usually Ships Within 3 Weeks
Add to Cart

+ -
SteamCraft® Ultra steamers features a patented Steam Jet system that provides high velocity steam without the use of fans. The easy to use controls provide instant steaming of foods for healthy dining. These steamers are cost‐effective and energy efficient and a great buy for your restaurant kitchen.
  • Model #: 24CGA10
  • Cooking Capacity: (10) 12" x 20" x 2.5" cafeteria pans
  • Innovative PowerPak gas steam generator fired with 125,000 BTU generator
  • 7.5 gallon generator reservoir for high speed cooking production
  • Fully insulated rear mounted steam generator
  • Fully automatic electronic spark ignition (pilotless)
  • Simple ON/OFF start switch to ignite burners and fill the generator with water
  • Generator cleaning port is located on the outside, top of the unit for easy cleaning
  • Steam generator has a Stand By Mode to hold generator at proper steaming temperature and cooking starts instantly
  • (1) 60 Minute electro‐mechanical timer and switch with audible alarm for cooking time completion
  • 14 Gauge 304 stainless steel compartment door, cavity, and steam generator
  • Automatic generator drain with a "Water Jet" drain cleaning feature
  • Automatic remote float type water level control, separate from the generator for easy access
  • Steam cooking distribution system with brass Steam Jets that produce a high velocity convection steam without fans
  • Coved corner design in cooking compartment to distribute heat evenly and make it easy to clean
  • Cold water condenser behind drain maintains a dry steam
  • Fully insulated cooking compartment for thermal efficiency
  • Removable stainless steel slide sacks for easy cleaning
  • "Cool to the Touch" 2‐piece compartment
  • Free floating inner door with reversible gasket for an airtight seal and a stainless steel Slam/Latch door for reliability
  • 60 Hz, single phase, 200 watts, 2.0 amps, 2 wire
  • Compartment door hinged on left, controls on the right
  • NSF Certified 6" stainless steel legs with adjustable flanged feet for a one inch level adjustment
  • Hazmat: No
  • Volts: 120
  • NSF Approved: Yes
  • Oversize: Yes
  • CSA Approved: Yes
  • Warranty: One Year Parts and Labor Warranty
  • Each Length: 33
  • Each Height: 65.5

Cleveland Range has a long and proud history of serving the foodservice industry with quality and innovative cooking devices. Shop for a variety of products like steamers, combination steamer-ovens, kettles, tilting skillets and specialty application ovens from Cleveland Range.

+ -
+ -
Write a Review

There are no reviews at this time. Be the first to review this product!
Q & A
+ -
Ask a Question
From: oak park mi 48237

Jan 23, 2013
where can i find a manual

Hello, we will upload a manual for this product and it will be found under the Literature tab. Thank you!

Jan 23, 2013

Hi. I'm not sure if you were the one who asked the previous question about a manual for this steamer, but I could not find any manual for a 24CGTA10 steamer, only the one for item #139993. Please contact Cleveland Range. Thanks!
By: bowler
From: Hamilton, Oh

Jul 17, 2013
can this unit suport a steam kettle

No, the 24CGA10 has an atmospheric boiler and will not run a kettle. The 24CGP10 will run up to a 40 gallon kettle. This is Wasserstrom item 596221. Hope this helps!

Feb 09, 2015
I would like to know if this price includes shipping?

Hello, shipping is not included in the total. For assistance with pricing, please contact our customer service department at 1-866-634-8927. Thank you!
By: Ben
From: Denver, CO

May 18, 2016
Hi All, I was curious how many gallons of water per hour at peak this unit requires. In other words, how large of water tanks do you need to get this to run for 8 hours? Im looking to install this on my food truck.

Hello, the manufacturer is currently unable to answer about the water tank size; however, they have said that this uses on the initial fill 7.9 gallons of water. Then 11.10 gallons per hour is the usage after the fill. Thank you!
+ -
+ -
+ -
+ -
