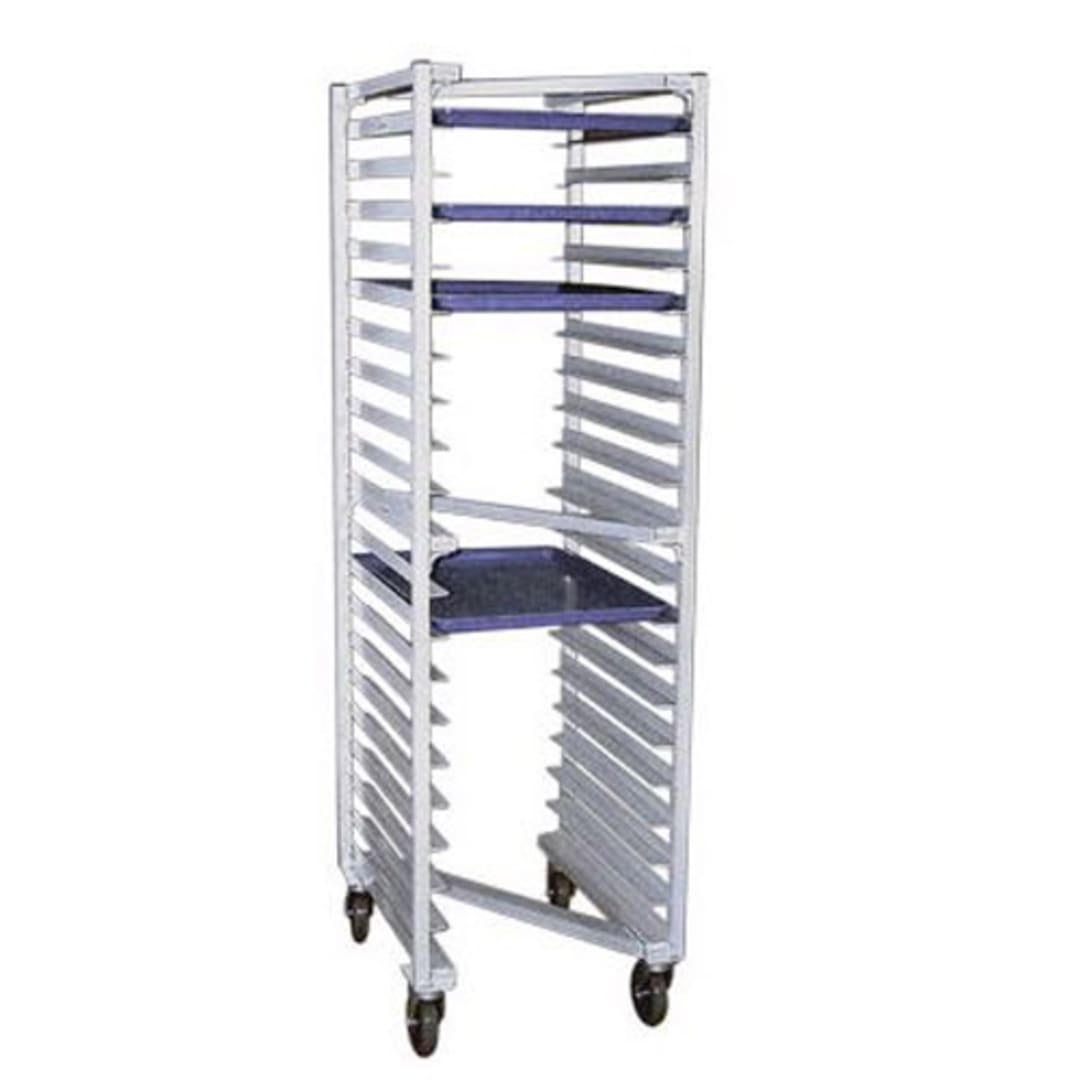

New Age 1331Z "Z" Type Nesting Open-Sided 20-Pan Rack

These front loading pan racks support trays from the bottom and not the lip for equal load distribution. The polyurethane casters make it easy to move without damage to floors. These racks are virtually maintenance free. The all welded construction not only provides lasting durability, but provides a crease and crack free surface that's easy to keep clean.

• Model #: 1331Z
• Width: 20-3/8"
• Height: 69-3/4"
• Depth: 26"
• Holds 20 pans
• Material: Hi-tensile, primary extruded aluminum, Type 6463-T5 alloy
• All heli-arc welded with all seams welded and sealed (no rivets)
• Supporting cross braces have gussets securely welded
• Supports trays by the bottom not just the lip
• Heavy duty aluminum tube and angle slides
• (4) 5" heavy duty platform type casters with non-marking polyurethane wheels
• Sides: (2 vertical posts of 1" x 1" x .070" wall tube
• Angle runners 1-1/4" x 1-5/8" x .100" are welded to each side
• Horizontal "Z" Supports: (3) 1" x 2" tubes welded into unit
• Corner Gussets: 1-1/2" x 1-1/2" x 5/8" thick angle welded to the inside angles
• Base: "Z" support frame with pre-tapped caster plates welded to each corner
• (4) 5" platform swivel polyurethane casters with sealed ball bearing axle
• Shipped assembled
• Lifetime Guarantee against rust and corrosion
• Five-Year Guarantee against material defects and workmanship
• NSF Certified
