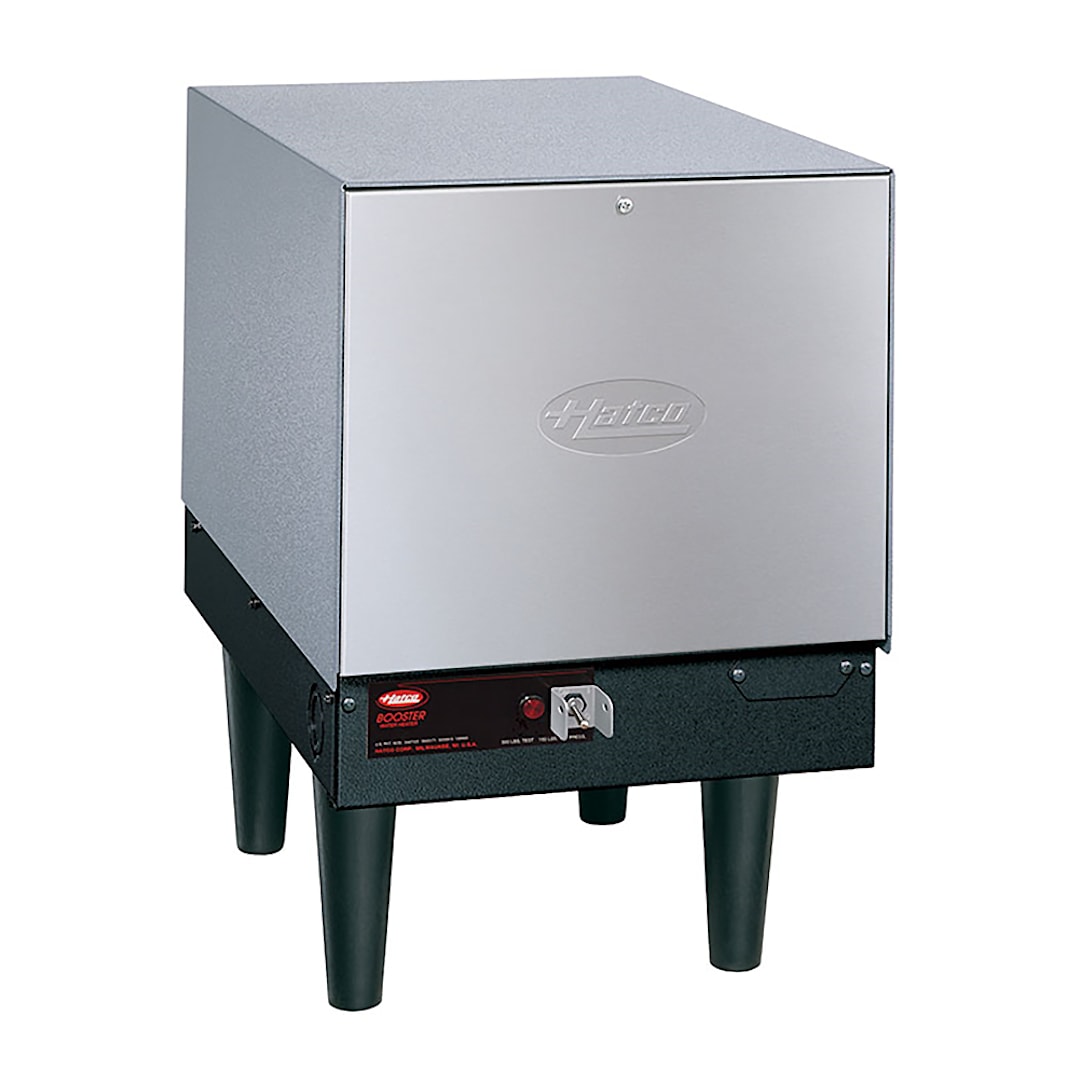

Hatco C-12-208-1-QS 208V 6 Gallon C-12 Booster Heater

The Hatco compact electric booster water heater provides the final rinse water required to sanitize and flash‐dry dishes and flatware. Fiberglass insulation helps minimizes heat loss and it comes equipped with a built‐in energy cut‐off. It also features a low water cut‐off feature that prevents burnout by cutting the power to the heating element. This booster water heater has a space saving, compact design and is easy to install. Position next to the dishwasher using slide brackets or on 6" legs.

• Model #: C‐12‐208‐1‐QS
• Temperature/pressure relief valve
• Pressure reducing valve
• Two temperature/pressure gauges
• High‐temperature limit control
• Pilot indicator light
• On‐off switch
• Low‐water cut‐off to prevent element burnout due to low water
• 3/4" NPT pipe and fittings for inlet and outlet
• Available with slide brackets for mounting under a dish table
• Each booster has fiberglass insulation to minimize heat loss
• Hatco electric booster heaters are factory pre‐plumbed
• Pre‐wired with calibrated immersion thermostat and high temperature limit switch
• Powder coated silver‐gray hammertone body
• Swing‐away front panels with low‐water cut‐off
• Control fuses and transformer allow quick access to probes and elements
