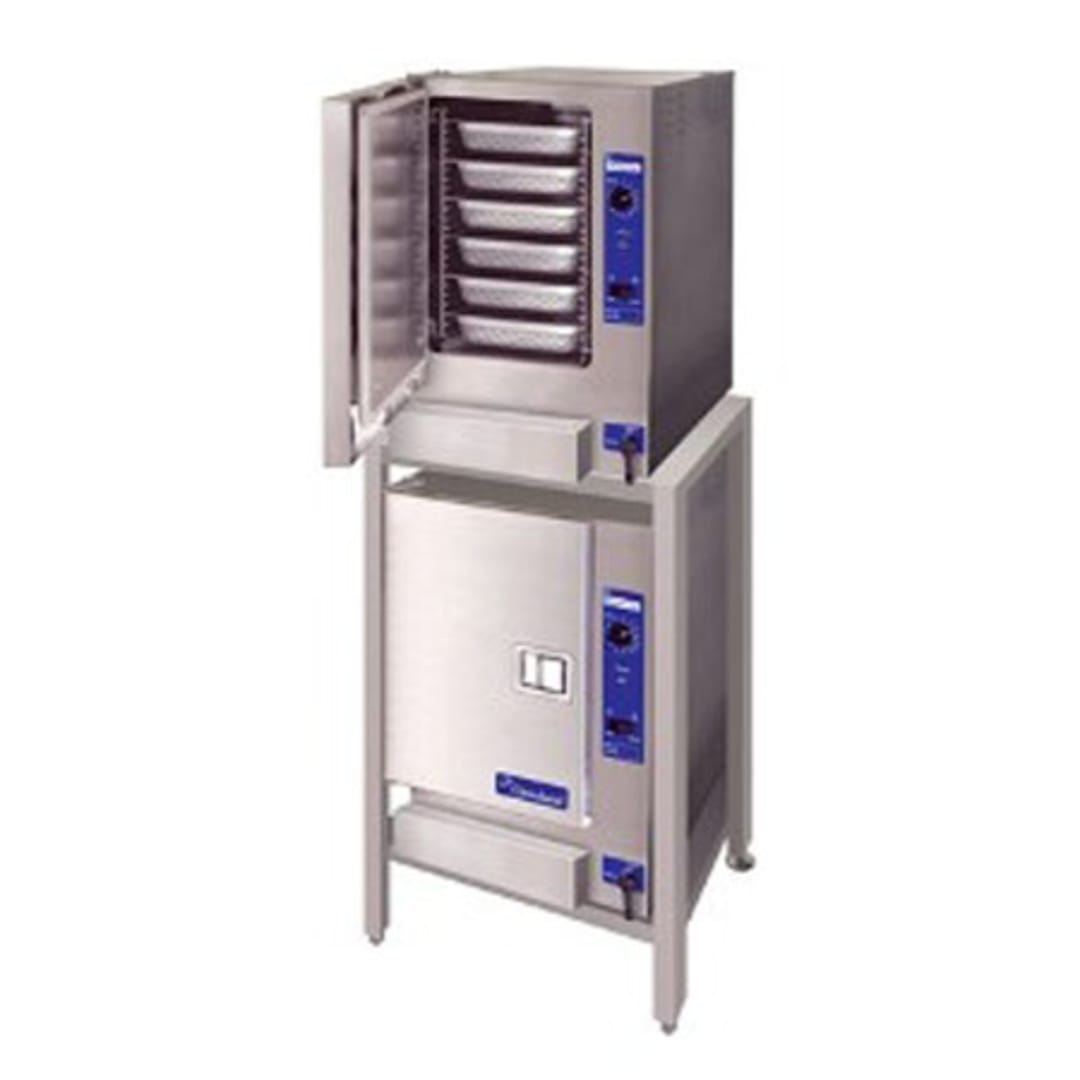

Cleveland Range (2)22CGT66.1 SteamChef Stacked Gas Convection Steamer

This Cleveland Range gas convection steamer features a 1.5 gallon water reservoir located at the bottom or the compartment and the front access burners allow for easy maintenance and cleaning. The KleanShield™ system helps keep the cooking compartment clean and free from impurities and helps eliminate foaming. Automatic water level controls helps maintain water levels during cooking so there is no need to manually refill.

• Model #: (2)22CGT66.1
• Automatic Water Fill & Drain
• 1.0 gallon water reservoir at the bottom of the cooking compartment
• Fan forced convection steam with patented KleanShield™ cooking compartment
• 193° preheat and standby temperature
• High temperature automatic safety shut‐off
• Steam and fan shut off control when compartment door is opened
• Includes a 60‐minute electro‐mechanical timer and LED indicator
• Lights for Power On and Reset
• Timed and manual bypass switch for constant steaming
• Exclusive SteamChef™ automatic drain control
• Left hand door hinging with controls on the right
• Durable 14 gauge stainless steel compartment door and latch
• Reversible door gasket
• Heavy‐duty 4" skid resistant adjustable legs and flanged feet
• GAS: 0.5" Dia. IPS, 62,000 BTU
• ELECTRICAL: (one connection per unit) 1 Phase, 4 Amps
• COLD WATER: (C‐1) Feed water for reservoir, 35 Psi Minimum, 60 Psi Maximum; (C‐2) Drain condenser water, 35 Psi Minimum, 60 Psi Maximum; Two 0.75" NH‐F (Garden Thread) connections
• DRAIN CONNECTION: 1.5" NPT‐M
• Compartment capacity: (6) 12" x 20" x 2‐0.5" deep pans or (12) 12" x 20" x 1" deep pans or (4) 12" x 20" x 4" deep pans
