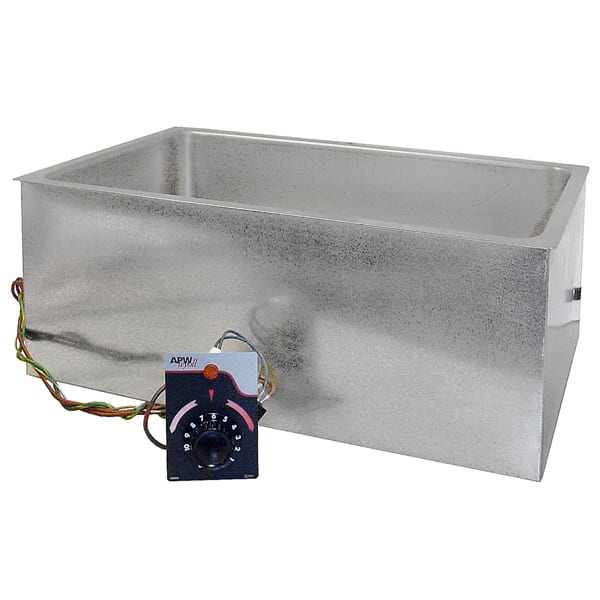

APW Wyott BM-80D Bottom Mount Electric Built-In Hot Food Well Unit

Item #: 977112
Model #: BM-80D 120V
Manufacturer: APW Wyott

The BM-80D comes with stainless steel ½NPT drain welded to bottom of pan and provided with removable screen. This unit in a UL recognized component construction with open wires and increase-decrease plate.

$318.56
Availability

Factory Ship

 Each
Add to Cart

Free Shipping on orders over $500

– Excludes Furniture & Clearance –
Description
+ -
The BM-80D comes with stainless steel 1/2" NPT drain welded to bottom of pan and provided with removable screen. This unit is available in a wide variety of wattage power to accommodate your needs, whether it is for High Performance, Fast Recovery power or Energy Efficient, Lower wattage (750 watts) power. Heavy-Duty bottom mount, insulated rectangular drop-in hot food well is designed for installation in metal countertop. All bottom mounted food wells are heated by tubular calrod heat element shaped in serpentine fashion for even heat distribution to pan base. Element is mounted under well and secured by an aluminized reflector shield for maximum efficiency and thermostatically controlled for fast heat recovery. This unit in a UL recognized component construction with open wires and increase-decrease plate.
Standard Features:
  • Constructed of Deep-Drawn 20 Ga. Type 304 Stainless Steel
  • Entire Heat Assembly Covered with Inspection Housing with Layer of 1-1/2" Thick Compressed Fiberglass Insulation
  • With Drain and Removable Screen
  • Unit May Be Used Wet or Dry (Wet Use Offers Best Results)
  • Easy Access to Heating Elements
  • Thermostatic Control with 36" Capillary (Effective Length 26"
  • Includes Open Wires and Increase-Decrease Plate
  • Large Indicating Pilot Light
  • Multiple Units Can Be Installed in Same Table or Counter
  • Multiple Wattages and Voltage Choices
  • Overall Outside Dimensions: 8-5/16" x 13-13/16" x 21-3/4" (HxWxL)
  • Overall Inside Dimensions: 6-1/4" x 13-3/16" x 20-1/8" (HxWxL)
  • Cutout Dimensions: 11-7/8" x 19-7/8" (WxL)
  • UL, CSA, RU, UL Certified
  • 1 Year Limited Warranty
  • Model #: BM-80D
  • Hazmat: No
  • Oversize: No
  • Warranty: 1 Year Parts and Labor Warranty
  • UL Approved: Yes
  • CSA Approved: Yes
  • CUL Approved: Yes
  • Each Weight: 20
  • Energy Star Rating: Yes
  • Each Height: 8.94
  • Each Width: 13.81
ABOUT APW WYOTT

APW Wyott is a leading source of quality equipment solutions to the foodservice and retail industries worldwide. The company supplies a wide selection of equipment for cooking, toasting, heating and holding, warming and merchandising food items. APW Wyott serves customers in the fast food, casual and fine dining, convenience store, supermarket, hospitality and institutional markets the world over.

Literature
+ -
Attachments (  1 - 1 of 1  )

Reviews
+ -
Write a Review

There are no reviews at this time. Be the first to review this product!
Q & A
+ -
Ask a Question
By: Terry
From: Sherman TX

Mar 18, 2015
QUESTION
I want to purchase this item but I need it in 208/240 volt. Can I get this from you? If so, what is the item #.

ANSWER
Hello, this item has multiple wattage and voltage choices, including 208/240V. For complete electrical specifications, on the product page please scroll down and select the tab “Literature”. There you will find a spec sheet for this well unit. Thank you!
