  • APW Wyott BM-80 UL Bottom Mount Electric Built-In Hot Food Well Unit

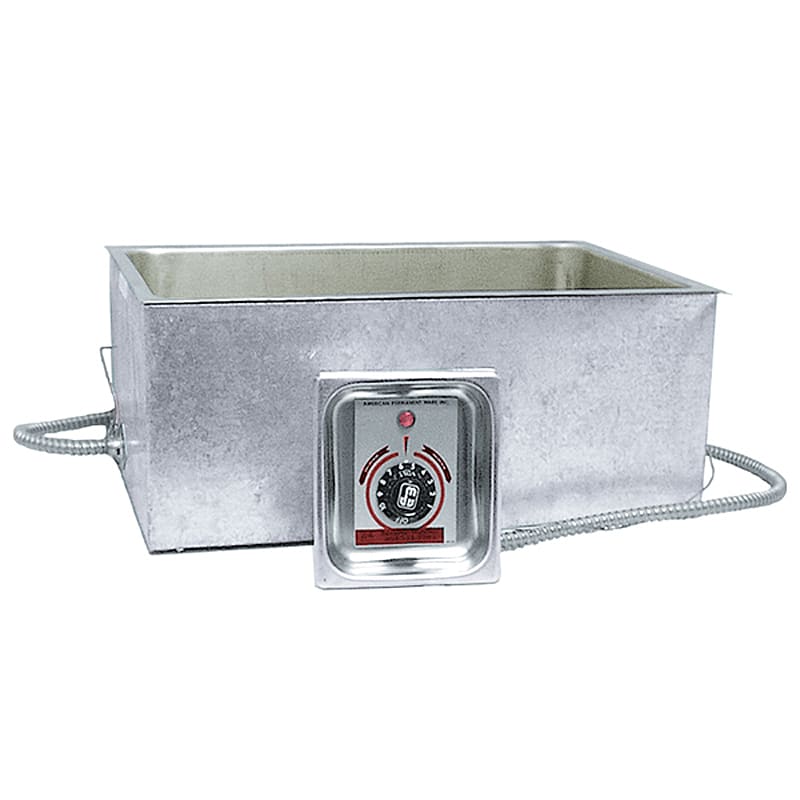

APW Wyott BM-80 UL Bottom Mount Electric Built-In Hot Food Well Unit

Item #: 284070
Model #: BM-80 UL
Manufacturer: APW Wyott

The BM-80 Ul bottom mount, insulated rectangular drop-in hot food well is designed for installation in metal countertop. Available in a wide variety of wattage power to accommodate your needs, whether it is for High Performance and Fast Recovery.

$351.03
Availability

Factory Ship

 Each
Add to Cart

Description
+ -
The BM-80 Ul Heavy-Duty bottom mount, insulated rectangular drop-in hot food well is designed for installation in metal countertop. Available in a wide variety of wattage power to accommodate your needs, whether it is for High Performance, Fast Recovery power or Energy Efficient, Lower wattage (750 watts) power. All bottom mounted food wells are heated by tubular calrod heat element shaped in serpentine fashion for even heat distribution to pan base. Element is mounted under well and secured by an aluminized reflector shield for maximum efficiency and thermostatically controlled for fast heat recovery. This unit in includes complete UL listed construction including electrical conduit, bezel and control box.
Standard Features:
  • Constructed of Deep-Drawn 20 Ga. Type 304 Stainless Steel
  • Entire Heat Assembly Covered with Inspection Housing with Layer of 1-1/2" Thick Compressed Fiberglass Insulation
  • Without Drain
  • Unit May Be Used Wet or Dry (Wet Use Offers Best Results)
  • Easy Access to Heating Elements
  • Thermostatic Control with 36" Capillary (Effective Length 26"
  • Large Indicating Pilot Light
  • Multiple Units Can Be Installed in Same Table or Counter
  • Multiple Wattages and Voltage Choices
  • Overall Outside Dimensions: 8-5/16" x 13-13/16" x 21-3/4" (HxWxL)
  • Overall Inside Dimensions: 6-1/4" x 13-3/16" x 20-1/8" (HxWxL)
  • Cutout Dimensions: 11-7/8" x 19-7/8" (WxL)
  • Includes Electrical Conduit, Bezel and Control Box
  • UL, CSA, RU, UL Certified
  • 1 Year Limited Warranty
  • Model #: BM-80UL
  • Hazmat: No
  • Oversize: No
  • Volts: 120
  • NSF Approved: Yes
  • UL Approved: Yes
  • CSA Approved: Yes
  • CUL Approved: Yes
  • CE Approved: Yes
  • Energy Star Rating: Yes
  • Warranty: 2 YEAR Warranty on Heating Elements and 1 1 Year Warranty Parts and Labor
  • Plug Type: NO CORD OR PLUG
  • Each Weight: 9
  • Each Width: 42.26
