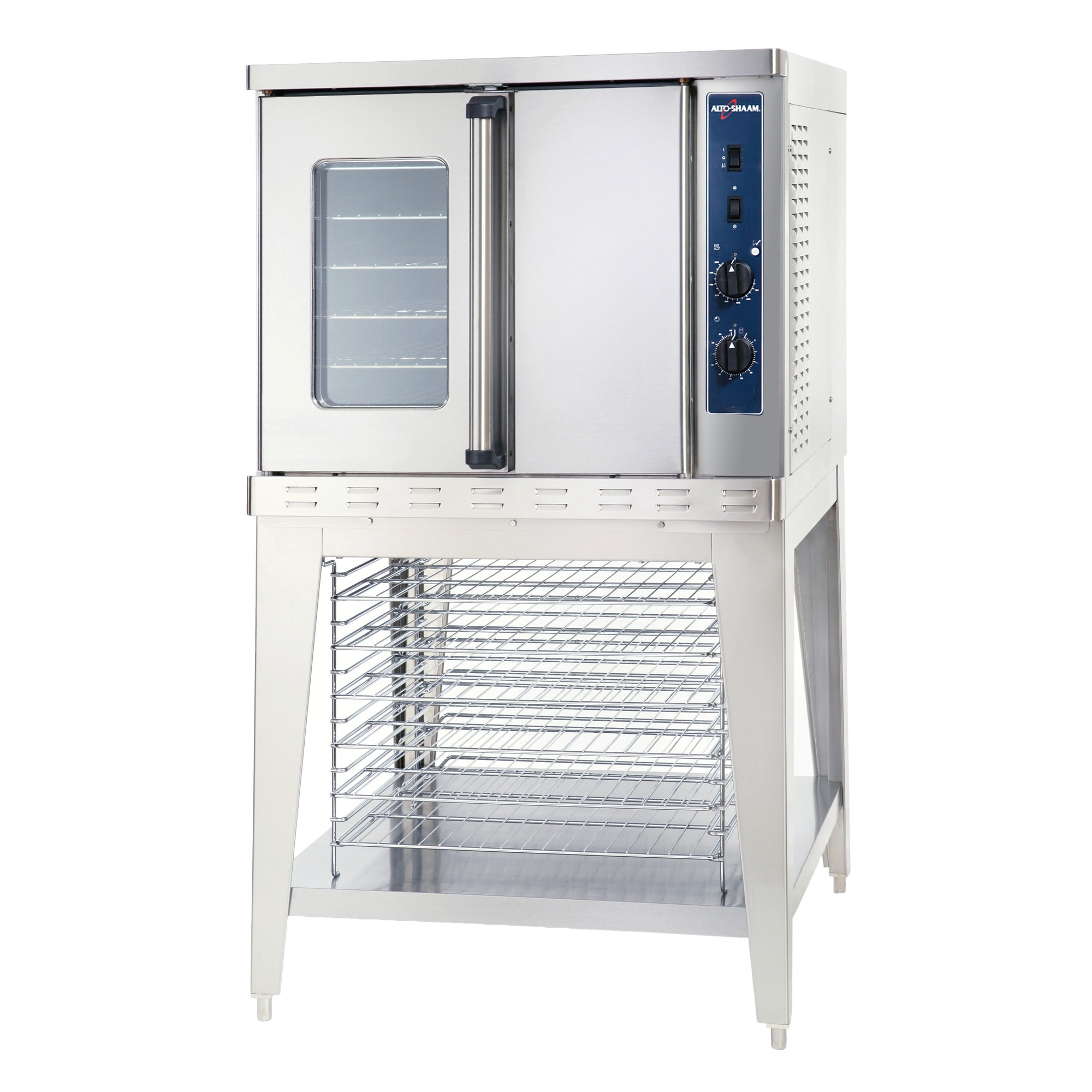

Alto-Shaam ASC-4E Platinum Series Electric Single-Deck Convection Oven

Item #: 817393
Model #: ASC-4E
Manufacturer: Alto-Shaam

Alto‐Shaam® Platinum Series Electric Convection Oven features manual control, porcelain enamel interior and solid welded construction. The oven interior has coved corners, and a heavy duty, bottom liner.

$4,772.00

$5,965.00 List Price

Availability

Factory Ship

 Each
Add to Cart

Description
+ -
Alto‐Shaam® Platinum Series Electric Convection Oven features ‐ manual control, porcelain enamel interior and solid welded construction. The oven interior is construction of porcelain enamel with coved corners, and a heavy duty, 14 gauge bottom liner. It is supplied with six (6) chrome plated wire shelves with 2 removable side racks and 12 shelf positions spaced at 1‐3/4". The oven is furnished with two interior lights, a 10,000 watt heating element and a heavy duty, 3/4 hp, two‐speed fan motor. Control includes a 100° F to 500° F thermostat and a 60 minute count‐down timer. The control features a oven cool‐down function, oven‐ready indicator light, and produces and audible signal when time has expired. The oven is supplied with 25" legs with bullet feet.
  • Model #: ASC‐4E
  • Stainless steel door and a double pane thermal window
  • 60/40 door system includes solid stainless steel doors and a double pane thermal window door to view the lighted oven interior
  • Doors open beyond a 120° angle for easier loading
  • Spring‐loaded roller assembly to provide a positive, pressure‐lock seal
  • Heavy‐duty door hinging system
  • Solid welded construction
  • Rear enclosure panel is made with corrosion resistant coated steel
  • Removable oven baffle provides easy cleaning
  • Heavy‐duty 3/4 hp, two‐speed motor provides a fan speed for high volume production
  • Easy to clean porcelain enamel oven interior is standard
  • 10 kW element
  • Durable, low maintenance stainless steel door gaskets
  • Six chrome plated wire shelves with 2 removable side racks and 12 shelf positions spaced at 1‐3/4"
  • Two interior lights
  • 10,000 watt heating element
  • 3/4 hp, two‐speed fan motor
  • Thermostatic control with a temperature range of a 100°F to 500°F
  • 60 minute count‐down timer
  • Oven cool‐down function
  • Oven‐ready indicator light
  • Produces an audible signal when time has expired
  • Includes 25" legs with bullet feet
  • ETL Listed
  • UL Approved: No
  • Hazmat: No
  • NSF Approved: Yes
  • CE Approved: No
  • Each Length: 44.5
  • Oversize: Yes
  • Assembly Required: No
  • Volume Capacity: 45 Quarts
  • CUL Approved: Yes
  • Volts: 208
  • Each Height: 57.5
  • Weight Capacity: 72 Pounds
  • Each Weight: 393
  • Plug Type: No Cord, No Plug
  • Each Width: 38
  • Material: Stainless Steel
  • Warranty: One year parts and labor warranty from the date of installation or fifteen months from the shipping date.
ABOUT ALTO-SHAAM

Alto-Shaam® has everything you need for your kitchen.They have heated holding cabinets, convection ovens, warmers, cook and hold ovens, and heated display cases. Wasserstrom.com has a great selection of Alto-Shaam® equipment and we'll be happy to help you find what you need.

For additional Large Equipment information or specifications, please contact our Customer Service department at 1-877-425-8906.
