APW Wyott Lowerator® Adjustube II Heated Plate Dispenser, HL-12A

APW Wyott Lowerator® Adjustube II Heated Plate Dispenser, HL-12A
Item #: 928353

Model #: HL-12A	Manufacturer: APW Wyott

$847.48
$1,801.00 List Price

Qty:
Each

FACTORY-SHIP

Ask a Question

Review this Item

Companion Items

		Cambro Solid White Camwear® 10" Buffet Spoon Item #: 106164
$1.90

		APW Mobile Cantilever Lowerator® 10x14 Tray Dispenser, CTR-1014 Item #: 541829
$1467.50

		Traex® Red 30 Compartment 1 Open Extender Glass Rack Item #: 262393
$32.47

Description
Specifications
Literature
Reviews
Q & A

APW Wyott Lowerator® Adjustube®II Heated Plate Dispenser, HL-12A

The Adjustube®II is a tube-type, self-leveling, drop-in dispenser field adjustable to a variety of china weights and diameters. To change china patterns, simple adjust the spring rate and position the stainless steel guide rods in the proper head guide holes, Knurled lock nuts hold the rods securely in place, and the rods form the guides for the dispensing head. When full tube diameter is required, the rods store in the flanges and form bumpers to protect the china. APW Wyott's Lowerator® dispensing mechanism uses springs attached to a sliding support bar that rides both inside and outside the tube. This design feature prevents a stack of dishware from sticking in the down position, and releasing unexpectedly. The dispensing head is stainless steel with five sets of reinforced guide holes for smooth, even operation. China is always held securely and at a consistent and convenient dispensing height. The HL-A Heated Adjustube®II has a self-contained heating system with individual on/off switch, indicator light and adjustable thermostat.
Standard Features:

Stainless Steel Construction
Easy Drop-In Insulation
Stainless Steel Adjustable Springs
Maximum Capacity for Dishes - Six Dozen
Maximum Capacity for Bowls - Three Dozen
Maximum Capacity for Cups or Glasses - 4-1/2 Dozen
Accommodates - 9-1/4" to 11-7/8" Diameter Size Plates
Self Leveling
Number of Adjustment: 5
Minimum Temperature Range: 80°-100°F
Maximum Temperature Range: 110°-150°F
Counter Cutout Diameter: 14-5/16"
Flange Diameter: 15-1/8"
120V / 500W / 4.2Amps
NSF, CSA, UL Certified
1 Year Limited Warranty
Model #: HL-12A

Product Name	APW Wyott Lowerator® Adjustube II Heated Plate Dispenser, HL-12A
Short Product Description	ADJUSTUBE II DISPENSER, HEATED DISH, TUBULAR DROP-IN STYLE, SINGLE SELF-ELEVATING DISH PLATFORM, MAXIMUM DISH SIZE ADJUSTABLE FROM 9-1/4" TO 11 7/8
Product ID	928353
Manufacturer Name	APW Wyott
Model Number	HL-12A
Length	0.0 in
Width	0.0 in
Height	0.0 in
Weight	37.0 lb
Cross Reference ID	APW-HL12A, HL-12A, 928353
Hazmat	N
Oversize	N
Return To Manufacturer	Y
CSA Approved	Y
Material	Stainless Steel
Max Volume Capacity	6 Doz.
Max Weight Capacity	175
Mfg Part #	HL-12A
NSF Approved	Y
Plug Type	NO PLUG
UL Approved	Y
Volts	120
Warranty	1 Year Limited Parts and Labor Warranty
Assembly Required
Min Volume Capacity

Spec Sheet

Manual

Write a Review

There are no reviews at this time. Be the first to review this product!

Ask a Question

There are no questions at this time. Be the first to ask a question about this product!

APW Lowerator® Enclosed Unheated Adjustube® II Plate Dispenser Item Number: 494100 Model Number: SL-9A
Adjustube Ii Dispenser, Plat Item Number: 687021 Model Number: L-9A
APW Wyott 12" Adjustube II Lowerator Plate Dispenser, L-12A Item Number: 897239 Model Number: L-12A
Lowerator Dispenser, Dish, T Item Number: 116561 Model Number: SL-6

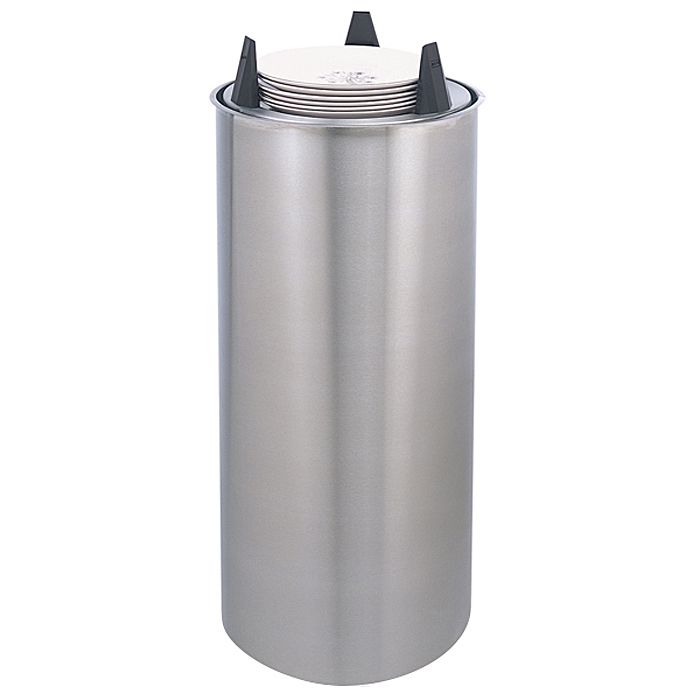

Lowerator Dispenser, Dish, T Item Number: 246503 Model Number: SL-5
