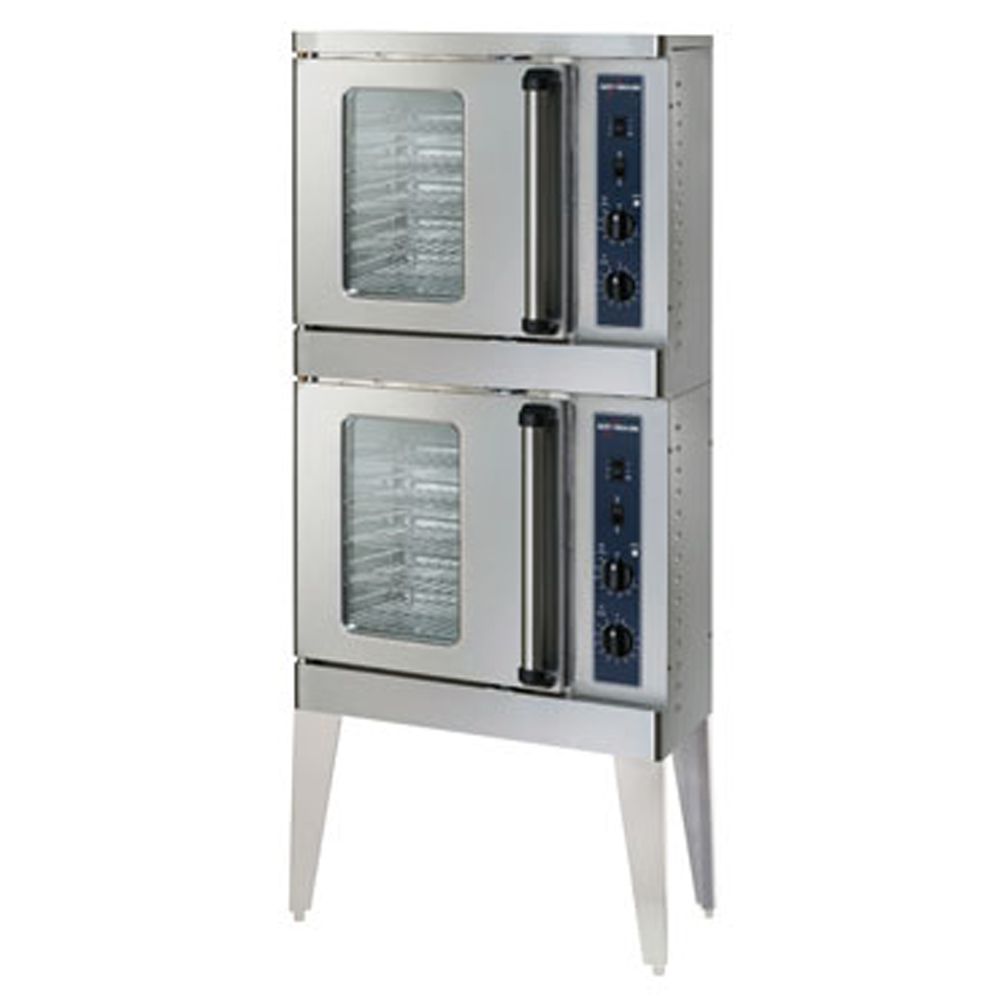

Alto-Shaam 2-ASC-2E/STK-MAN Platinum Stacked Electric Convection Oven
Item Number: 896836
Model Number: 2-ASC-2E/STK-MAN
Alto-Shaam 2-ASC-2E/STK-MAN Platinum Stacked Electric Convection Oven
Alto-Shaam 2-ASC-4E/STK-MAN Platinum Stacked Electric Convection Oven
Item Number: 105453
Model Number: 2-ASC-4E/STK-MAN
Alto-Shaam 2-ASC-4E/STK-MAN Platinum Stacked Electric Convection Oven
Alto-Shaam 2-ASC-4E/STK-ELEC Platinum Stacked Electric Convection Oven
Item Number: 282426
Model Number: 2-ASC-4E/STK-ELEC
Alto-Shaam 2-ASC-4E/STK-ELEC Platinum Stacked Electric Convection Oven

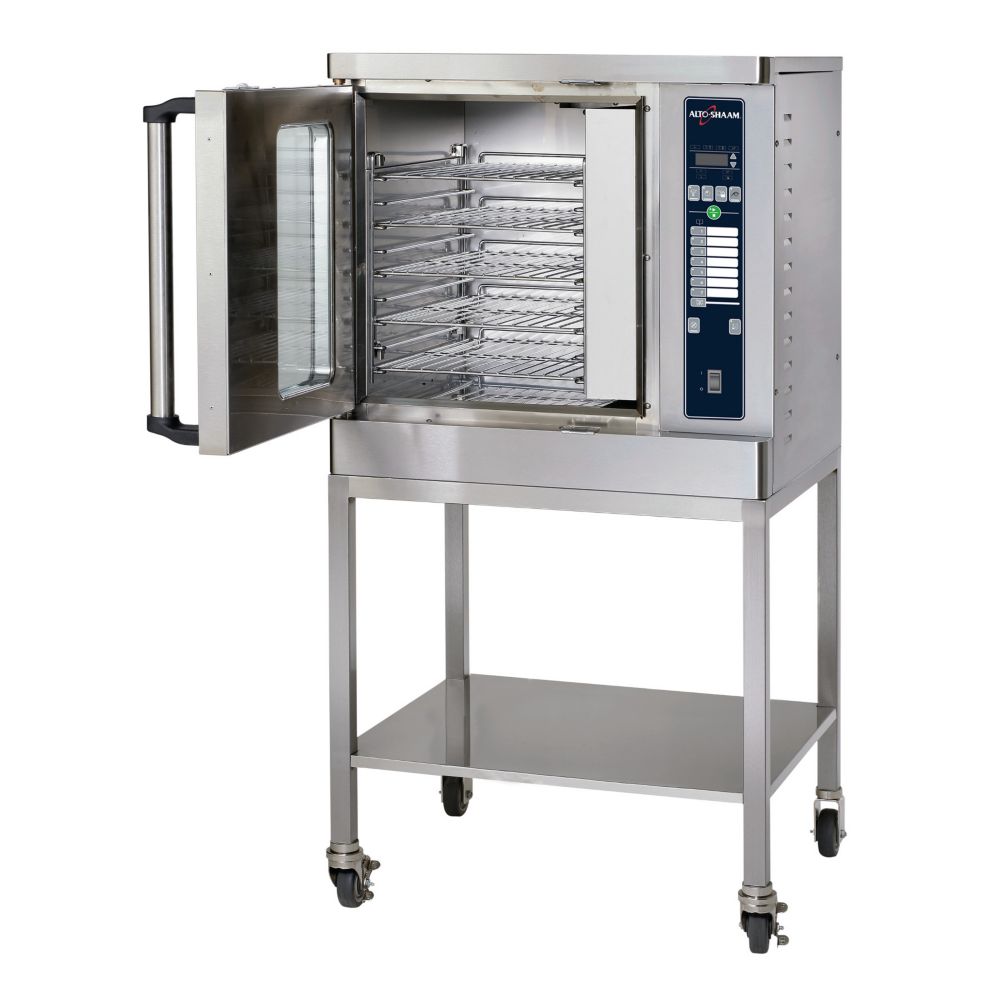

Alto-Shaam ASC-2E/E Platinum Series Electric Half-Size Convection Oven
Item Number: 382649
Model Number: ASC-2E/E
Alto-Shaam ASC-2E/E Platinum Series Electric Half-Size Convection Oven

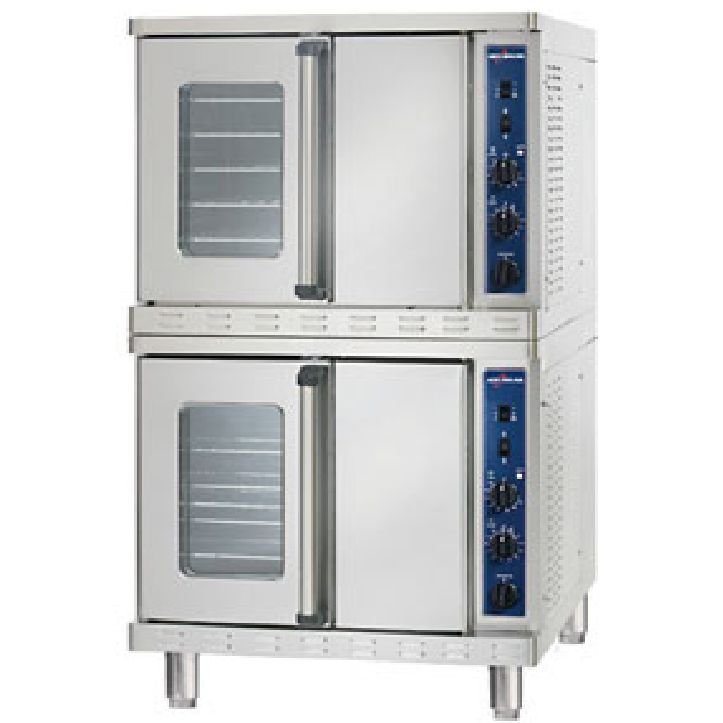

Alto-Shaam 2-ASC-4G/STK-ELEC Platinum Series Stacked Convection Oven
Item Number: 438754
Model Number: 2-ASC-4G/STK-ELEC
Alto-Shaam 2-ASC-4G/STK-ELEC Platinum Series Stacked Convection Oven

Loading...

Loading

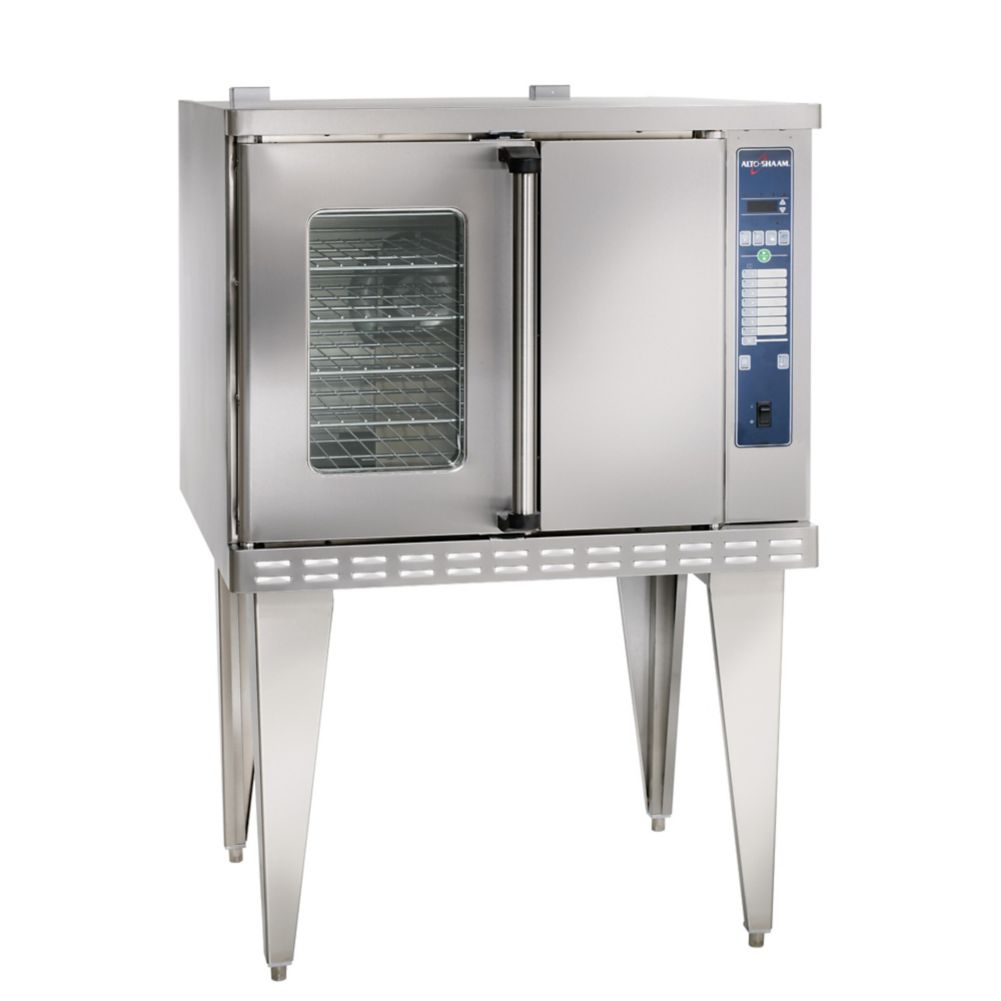

Alto-Shaam ASC-4G/E Platinum Series Gas Single-Deck Convection Oven

Item #: 828362

Model #: ASC-4G/E Manufacturer: Alto-Shaam

Free Shipping on Select Equipment

$5072.80
$6,341.00 List Price

Factory Ship
Add to Cart
Add to WishList

Alto-Shaam® ASC-4G/E Platinum Series Electronic Control Gas Convection Oven


The Platinum Series gas convection oven features solid welded construction and an angle iron frame. The oven interior is constructed of porcelain enamel with coved corners and a heavy duty, 14 gauge bottom liner. It is supplied with six (6) chrome plated wire shelves with 2 removable side racks and 12 shelf positions spaced at 1-3/4". The transverse-flow burner system generates a total connection energy load of 50,000 BTU's per hour and is furnished with a heavy-duty, 3/4 hp, two-speed fan motor. Control includes a 100° F to 500° F thermostat; and a 60-minute count-down timer. The control features an oven cool-down function, oven ready indicator light, and an audible signal when time has expired. The oven is supplied with 25" legs with bullet feet.
Standard Features:
  • Natural Gas
  • Alto-Shaam®
  • Height: 58-1/2"
  • Width: 38"
  • Depth: 44-1/2"
  • Weight: 393 Lbs.
  • Product/Pan Capacity: 72 Lbs. or 45 Qts.
  • Twelve (12) Full-Size Sheet Pans
  • Electronic Controls w/ Food Probe
  • Superior Baking and Roasting Capability
  • Patented Transverse-Flow Burner System that Prevents Need to Rotate Pans
  • 50,000 BTU Burner Enhances the Even Distribution of Heat for Raid Heat Recovery and Maximum Efficiency
  • Controlled Velocity of Convected Air is Exclusive to the Platinum Series
  • Convected Air Prevents The Possibility of Product Damage from High Velocity Air Movement
  • Electronic Spark Ignition System
  • Exclusive, Lowered Flue Exit Maximizes the Utilization of Flue Heat Prior to Discharge from the Oven
  • A Dependent 60-40 Door System Includes Solid S/S Doors
  • Double Pane Thermal Window Door to View the Lighted Oven Interior
  • Door Opens Beyond a 120-Degree Angle for Easier Loading
  • Spring Loaded Door
  • Bronze Roller Assembly to Provide a Positive Pressure-Lock Seal
  • Heavy-Duty Door Hinging System
  • Durable, Low Maintenance Stainless Steel Door Gaskets
  • Gas - Natural or Propane (Must Be Specified at Time of Ordering)
  • Maximum Connected Pressure: 14.0" W.C
  • UL, CUL, CE and NSF Certified
  • Model#: ASC-4G/E
Product Name Alto-Shaam ASC-4G/E Platinum Series Gas Single-Deck Convection Oven
Product ID 828362
Manufacturer Name Alto-Shaam
Model Number ASC-4G/E
Length 44.5 in
Width 38.0 in
Height 58.5 in
Weight 438.0 lb
Cross Reference ID 828362, ASC-4G/E
Hazmat
Oversize
Return To Manufacturer
CE Approved Yes
CUL Approved Yes
Gas Type Natural Gas
Material Stainless Steel
Mfg Part # ASC-4G/E
NSF Approved Yes
Plug Type Nema 5-15P
UL Approved Yes
Volts 120
Warranty One Year Limited Warranty, parts and labor
Assembly Required
