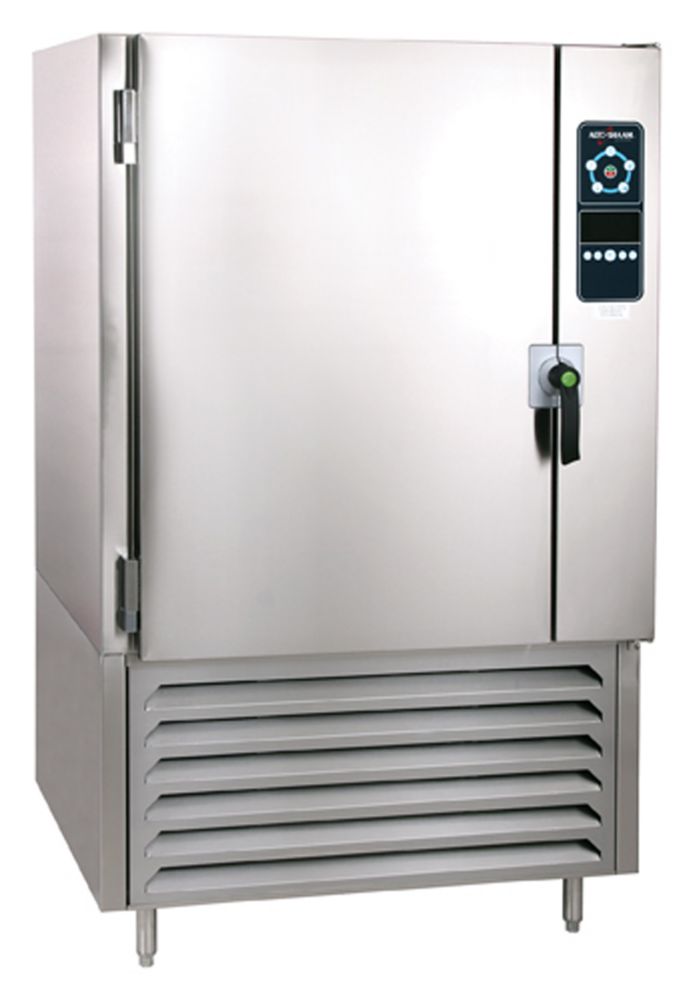

Alto-Shaam QC2-40 QuickChiller™ Self-Contained Reach-In Chiller

Item #: 698506

Model #: QC2-40 Manufacturer: Alto-Shaam

Free Shipping

$16653.60
$20,817.00 List Price

Factory Ship
Add to Cart
Add to WishList

Alto-Shaam® Upright Chiller QC-40 Freezer/ Chiller Refrigeration System


The Alto-Shaam® QuickChiller™ is a processing refrigeration system designed to uniformly decrease the temperature of hot foods rapidly, to either a chilled or frozen state. Processing food by time or by internal product temperature probe enhanced food safety, longer product storage life, and better production efficiency. All Alto-Shaam® QuickChiller™ include an electronic microprocessor control with a vacuum fluorescent display; twenty programmable processing presets; language display settings in English, Spanish, or French; and communication capability. Alto-Shaam® provides a five-year limited warranty on the compressors of self-contained QuickChiller™ models or select a model designed to be connected to a remote compressor.
Standard Features:
  • Alto-Shaam®
  • Height: 70-1/4"
  • Width: 38-1/2"
  • Depth: 39-7/8"
  • Weight: 676 Lbs.
  • Reach-In
  • Back Clearance Requirements: 6"
  • Top Clearance Requirements: 6"
  • Each Side Clearance Requirements: 4"
  • Enhances Food Safety and Production Efficiency
  • Flexible Processing System Design to Improve Work Flow and Reduce Labor Requirements
  • Free Standing Unit
  • Compact Size
  • 5 Chill Modes
  • Quick-Freeze Mode
  • Soft-Chill Mode for Less Dense Items
  • Hard-Chill Mode for More Dense Items
  • Holding Mode for Chilled or Frozen Items
  • Automatic Defrost
  • Temperature Probe Includes 3 Internal Temperature Probes
  • Holds Up to 20 Menu Item can be Stored in the Controls Memory
  • Programmable Preset Capability for up to 20 Menu Items
  • Safely and Rapidly Chills or Freezes Hot foods to Proper Holding Temperatures within HACCP/FDA Food Code Guidelines
  • The QuickChiller™ Process Allows Chilled Food to be Stored for 5 Days
  • Chilling Capability for Five (5) Full-Size Pans or (10) Full-Size Sheet Pans
  • Heavy Duty Stainless Steel Construction
  • Fully Insulated with High Density Polyurethane Foam
  • Two, Fully Insulated S/S Doors Included a Single Self-Adjustable, Rotary Door Latch
  • 1 HP Compressor System
  • Freeze Mode: 7,200 BTU's Per Hour
  • Chill Mode: 11,400 BTU's Per Hour
  • (3) Detachable Internal Product Temperature Probes
  • Five (5) Stainless Steel Shelves
  • Shelves Fit on Six (6) Non-Tilt Pan Support Rails
  • Rails Spaced on 6" Centers
  • R-404a Refrigerant
  • Capacity: 144 Lbs. or 90 Qts.
  • Twelve (12) Full Size Hotel Pans
  • Six (6) Full-Size Sheet Pans (On Wire Shelves Only)
  • Appliance Must Be Installed Level
  • Recommended Wire Size #10/2 W.G.
  • 208/240 V / 1 Phase / 50/60 Hz / 30 Amps
  • UL, CUL, CE and NSF Certified
  • 5-Year Limited Warranty on Self-Contained Compressor (Excludes Labor)
  • Model#: QC-40
Product Name Alto-Shaam QC2-40 QuickChiller™ Self-Contained Reach-In Chiller
Product ID 698506
Manufacturer Name Alto-Shaam
Model Number QC2-40
Length 39.88 in
Width 38.5 in
Height 70.25 in
Weight 950.0 lb
Cross Reference ID 698506, QC-40, ALT-QC40
Hazmat
Oversize
Return To Manufacturer
Brand Name Quickchiller™
CUL Approved Yes
Material Stainless Steel
Mfg Part # QC-40
NSF Approved Yes
Plug Type No Plug or Cord Supplied
UL Approved Yes
Volts 208/240
Warranty 5 Year Warranty on the compressor of self-contained Quickchiller™ models
Assembly Required
Spec Sheet
Spec Sheet
